316L Molybdenum-Bearing Austenitic Stainless Steel

This article explains the key selection considerations and practical project recommendations for 316L molybdenum-bearing austenitic stainless steel, helping you make more reliable material decisions.

316L Molybdenum-Bearing Austenitic Stainless Steel: The Basics

316L stainless steel is an ultra-low-carbon, molybdenum-bearing austenitic stainless steel. It can be understood as a derivative of 304 stainless steel and the low-carbon version within the 316 stainless steel family. By adding 2%–3% molybdenum and strictly limiting carbon content to C ≤ 0.03%, 316L achieves improved corrosion resistance.

Why is 316L described as a molybdenum-bearing austenitic stainless steel? Because it builds on the chromium-nickel system by adding molybdenum, which improves the material’s resistance to pitting and crevice corrosion. The “L” stands for low carbon, meaning the maximum carbon content is tightly controlled at ≤ 0.03%, which helps reduce risks associated with welding.

The development path of this material family can be viewed as 304 → 316 → 316L. Although all three are austenitic stainless steels, they differ clearly in terms of where and how they are best used.

304 stainless steel material display

The Core Material Properties of 316L

What makes 316L especially valued is its corrosion resistance, which is one of the main reasons it is so widely used in engineering applications. That said, corrosion resistance is only its standout feature. Its real strength lies in its overall balance across multiple performance areas.

Corrosion resistance

The addition of molybdenum significantly improves 316L’s resistance to pitting and crevice corrosion in chloride-containing environments, and this is one of the key distinctions between 316L and 304. In salt spray testing, 316L can often withstand more than 1,000 hours, while 304 typically performs at around 300–400 hours.

Weldability

Weldability is another major advantage of 316L. Its low-carbon design allows it to retain good resistance to intergranular corrosion after welding, even without post-weld heat treatment. The maximum carbon content of 316 stainless steel is 0.08%, while 316L is limited to below 0.03%. This allows 316L to simplify the manufacturing of large and complex structural parts while reducing both cost and distortion risk.

Good formability and workability

As a member of the austenitic stainless steel family, 316L also offers excellent ductility and toughness, making it suitable for sheet metal processes such as bending and stamping. However, cold working will increase its strength and hardness, so intermediate annealing may sometimes be needed to restore ductility.

Surface cleanliness and appearance consistency

316L also has a naturally good surface finish. With appropriate surface treatments such as polishing or brushing, it can achieve an attractive, easy-to-clean surface. This makes it well suited to applications in the food, medical, and architectural sectors, where hygiene and appearance standards are often demanding.

Standards and Common Grade Designations for 316L

On engineering drawings, purchase orders, and material certificates, 316L may appear under different names or designation systems. For that reason, it is worth being familiar with the common standards to make sure the material being purchased is actually correct.

304 stainless steel material display
Standard System Grade / Number Common Designation Notes
ASTM / UNS UNS S31603 316L, S31603, ASTM 316L The most widely used system. Plate is typically specified under A240, while pipe is commonly covered by A312.
Europe Werkstoff-Nr. 1.4404 EN 1.4404, X2CrNiMo17-12-2 European standard; elemental limits may be stricter in some cases.
China GB 022Cr17Ni12Mo2 316L, S31603, 022Cr17Ni12Mo2 New Chinese grade designation; the unified code system aligns with UNS.
Japan JIS SUS316L SUS316L, JIS 316L Japanese standard; composition is broadly consistent with ASTM.
UK BS 316S31 / 316S16 316S31 (roughly equivalent to 1.4404) British standard, now gradually being replaced by EN standards.

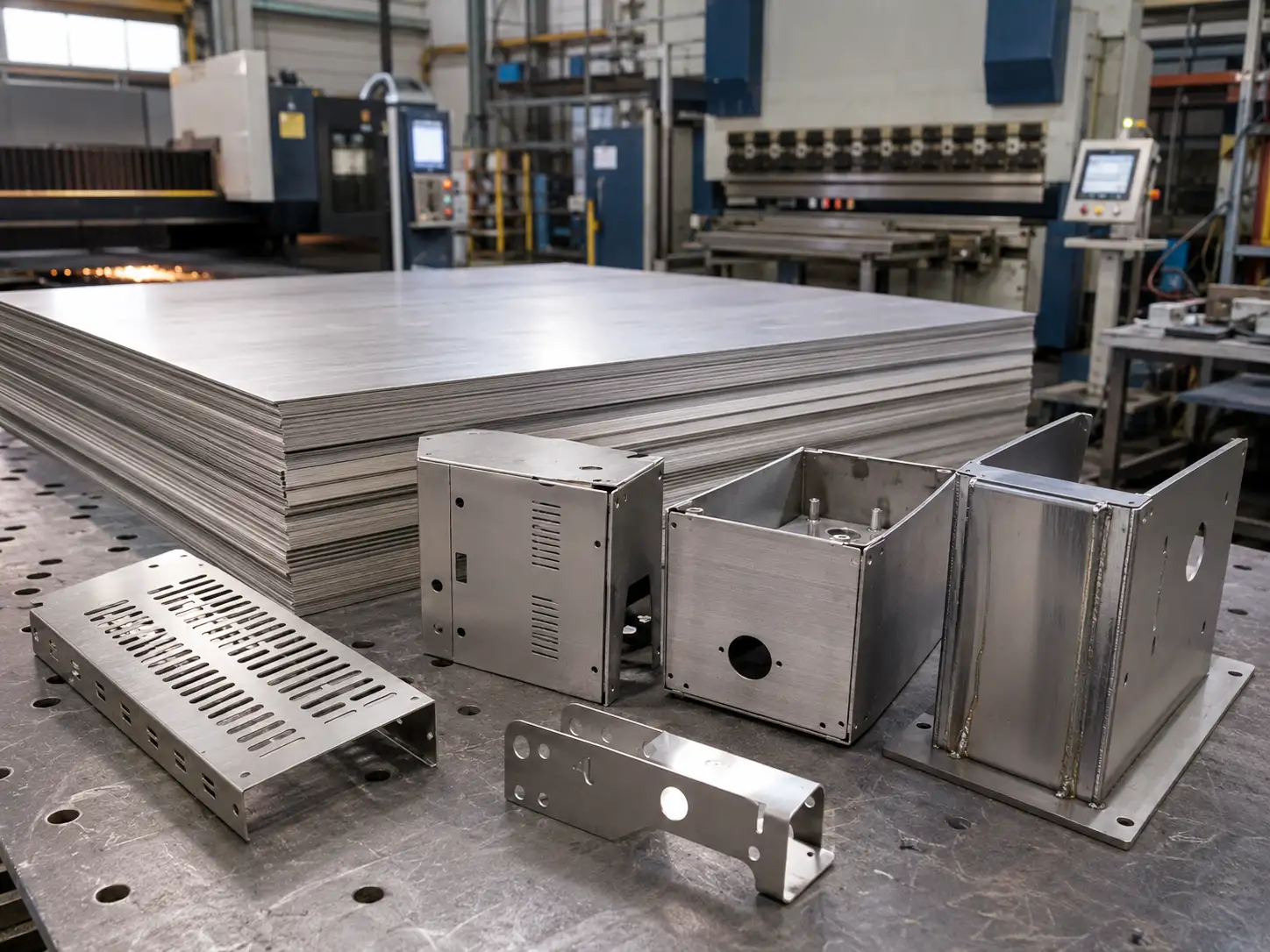

Processing Performance of 316L in Sheet Metal Fabrication

In metal fabrication, the processing behavior of 316L has a direct impact on both production quality and efficiency. Although 316L offers good manufacturability, it requires tighter process control than more commonly used materials such as 304 stainless steel. Different operations call for different control measures. At this stage, the focus shifts from material data on paper to what actually happens on the shop floor.

Common 316L Processing Steps and Key Control Points

| Process | Common Concerns | Effect on the Finished Part | Recommended Controls |
| ———————— | ————————————————- | ————————————————————————————————— | ———————————————————————————————————- |
| Laser cutting | Heat-affected zone width, edge oxidation | Can affect subsequent bending and welding performance, and may create starting points for corrosion | Use **nitrogen assist gas**, control power and cutting speed, and leave an appropriate machining allowance |
| Bending / forming | Springback, surface scratching, work hardening | Can affect dimensional accuracy and surface appearance, and may increase the risk of cracking | Design a suitable bend radius, use protective film, and control bending speed |
| Welding | Heat input control, filler metal selection | Affects corrosion resistance and the degree of distortion | Use **ER316L filler wire**, reduce current by about **25%**, and control interpass temperature |
| Pickling and passivation | Removal of heat tint, quality of the passive film | Affects both corrosion resistance and appearance | Follow the correct chemical ratio, rinse thoroughly, and avoid acid residue |
| Surface polishing | Roughness, consistency of surface texture | Affects visual appearance and cleanability | Polish in progressive stages, control polishing pressure, and carry out final passivation |

Common Application Scenarios for 316L and the Logic Behind Its Use

316L is widely used across many industries, including food processing, pharmaceuticals, laboratories, chemical processing, medical equipment, and a wide range of welded vessels and fabricated assemblies. These industries do not choose 316L simply because it is seen as a premium material, but because each application has its own priorities when it comes to material selection. In essence, material selection is about reducing the risk of failure under specific service conditions.

Typical 316L Applications and Why It Is Chosen

Application Typical Requirements Why 316L Is Chosen Additional Points to Confirm
Food processing equipment Non-toxic, easy to clean, corrosion-resistant, suitable for CIP/SIP Smooth surface, good resistance to mild acids and alkalis, and strong post-weld corrosion resistance Type of food media, cleaning process, and whether FDA or NSF certification is required
Medical and pharmaceutical equipment Biocompatibility, high cleanliness, sterilization resistance Good biocompatibility, surface finish can reach Ra ≤ 0.4 μm, and suitable for high-temperature sterilization Whether implant-grade material is required, and compliance with regulations such as FDA or USP
Water treatment and chemical equipment Resistance to chloride pitting, acids, and alkalis Molybdenum improves chloride resistance and offers good performance in a range of chemical media Media concentration and temperature, and whether a higher-grade corrosion-resistant alloy is needed
Coastal facilities and equipment Salt spray resistance, marine atmospheric corrosion resistance Offers 3-5 times the salt spray resistance of 304 in many applications Whether the part will be directly immersed in seawater, service temperature, and maintenance interval
Welded enclosures and structural fabrications Post-weld corrosion resistance, good formability The low-carbon design helps prevent intergranular corrosion, while maintaining good formability Welding procedure qualification and compliance with pressure vessel or structural codes
Laboratory equipment Resistance to chemical reagents, easy cleaning Resistant to many common chemical reagents and easy to polish The exact reagents involved, and whether a more specialized corrosion-resistant material is required

Note: In practice, material selection is not based on performance match alone. Other factors also matter, including cost, availability, and processing difficulty. In most cases, 316L costs around 20-30% more than 304, but from a full life-cycle perspective, 316L often offers a longer service life and may provide better long-term value.

How to Choose Between 316L, 304, 316, and Duplex Stainless Steel

304, 316, 316L, and duplex stainless steels each have a clearly defined performance range. A proper understanding of their differences makes it much easier to select the most suitable material for a given application.

Material Selection Comparison: 304 / 316 / 316L / Duplex Stainless Steel

Material Corrosion Resistance Weldability Formability Relative Cost Best-Suited Project Types
304 Suitable for general environments and mild corrosion Good, though sensitization may occur after welding Excellent Baseline (100%) Indoor equipment, freshwater systems, food processing in non-aggressive environments, architectural decoration
316 Better corrosion resistance than 304, with molybdenum added Good; thicker sections may require post-weld heat treatment Excellent About 1.2× that of 304 High-temperature equipment, non-welded corrosion-resistant parts, thin-wall welded structures
316L Excellent pitting resistance and chloride resistance Excellent, with no post-weld heat treatment required in many cases Excellent About 1.3-1.5× that of 304 Welded structures, marine engineering, chemical equipment, food and pharmaceutical sanitary equipment
Duplex 2205 Excellent resistance to pitting and stress corrosion cracking Usable, but requires tighter process control Moderate, with stronger work hardening tendency About 1.8-2× that of 304 Seawater desalination, high-pressure piping, aggressive chemical service, and lightweight structural design

What Else Should Purchasing and Engineering Confirm When Selecting 316L for a Project?

Once 316L stainless steel has been chosen as the raw material for a project, it may seem as though the main decision has already been made. In reality, however, the work is not finished yet. Even after 316L has been specified, several details still need to be clearly defined in the purchasing documents and technical agreement to ensure the final product performs as intended and avoids unnecessary problems.

316L Project Material Selection Checklist

Item to Confirm Why It Matters Potential Problems If Overlooked
Grade + standard + delivery condition Different standards and delivery conditions can lead to significant differences in material performance Material may fail to meet requirements, leading to welding issues or in-service failure
Sheet thickness and surface finish These directly affect manufacturability, cost, and appearance Processing difficulties, unacceptable appearance, or insufficient corrosion resistance
Post-weld pickling and passivation The weld and heat-affected zone are more vulnerable to corrosion Pitting near the weld, intergranular corrosion, or early leakage
Service environment Chlorides, crevices, and temperature fluctuations can accelerate corrosion Material failure within the design life, or even safety-related incidents
Application-specific priorities Cosmetic parts, structural parts, and welded parts each have different requirements Critical performance may fall short, affecting function or safety
Supplier qualifications Helps ensure material traceability and batch-to-batch consistency Quality variation, lack of traceability, and unclear accountability
Completeness of material certification Confirms that the material complies with the required standards Non-compliant material, failed inspection, rework, or scrap

FAQs​

Not necessarily. 316L does offer better corrosion resistance than 304, especially when it comes to pitting resistance, but not every project requires that level of performance. For indoor equipment, freshwater systems, and mildly corrosive media such as tap water or weak acids and alkalis, 304 is often fully adequate and comes at a lower cost, typically around 60–70% of the cost of 316L. 316L is better suited to marine environments, chemical equipment, coastal installations, and other applications involving chlorides or more aggressive corrosive media. The key to material selection is fit for purpose, not simply choosing the higher-grade option and risking unnecessary overengineering.

Not always. 316L performs well in marine atmospheric environments and generally offers 3 to 5 times the salt spray resistance of 304, but it can still corrode when directly immersed in seawater or exposed to high-temperature salt-laden environments above 60°C. The main variables include water temperature, chloride concentration, and the frequency of wet-dry cycling. In normal-temperature seawater, 316L may remain in service for years without obvious corrosion, but in hot seawater above 60°C or highly concentrated brine, the risk of pitting rises sharply. For equipment that will be immersed in seawater, it is advisable to assess temperature and chloride levels carefully and, where necessary, upgrade to Duplex 2205 or a super austenitic stainless steel.

Welding can produce heat tint in the heat-affected zone and may also create chromium-depleted areas, both of which reduce corrosion resistance and can become starting points for corrosion. Pickling removes the oxide scale and chromium-depleted layer, while passivation helps the surface reform a dense Cr₂O₃ protective film, restoring corrosion resistance. Without proper post-weld treatment, the weld area may begin to corrode within just a few months in a corrosive environment, leading to early failure. The usual practice is to carry out pickling immediately after welding using a solution such as 20% HNO₃ + 2% HF for 10–30 minutes, followed by passivation in 35% HNO₃ for 20–60 minutes, and then rinse thoroughly with clean water.

In addition to specifying “316L,” you should also confirm the applicable standard, such as ASTM A240; the delivery condition, such as solution annealed, cold rolled, or hot rolled; the surface finish, such as 2B, No. 1, or polished; dimensional tolerances, including thickness, width, and length; and the material certification documents, such as an EN 10204 3.1 or 3.2 certificate. Delivery condition is especially important. Solution-annealed material offers the best corrosion resistance, cold-rolled material provides higher strength but lower ductility, and hot-rolled material has a rougher surface. The technical specification should be complete and explicit, for example: Material: 316L (UNS S31603), Standard: ASTM A240, Condition: Solution Annealed, Surface Finish: 2B, Thickness: 3.0 ± 0.1 mm.

No, the priorities are quite different. For cosmetic parts such as decorative panels and enclosures, the focus is mainly on surface quality, including roughness, texture consistency, freedom from visible scratches, and uniform color. Depending on the application, this may also involve special finishes such as mirror polishing, brushed finishes, or PVD coloring, while corrosion resistance requirements will depend on the service environment. For structural parts such as brackets and frames, the emphasis shifts to mechanical performance and weld quality, including strength, hardness, and sound, defect-free welds, sometimes verified by non-destructive testing such as UT, PT, or MT. For welded components such as vessels and piping, the main concerns are weld integrity and corrosion resistance: the weld should be well formed, the heat-affected zone should show minimal oxidation, and post-weld pickling and passivation are essential. These requirements should be clearly defined for each part in the drawings or technical specifications.
