Sheet Metal Solutions for Industrial Machinery and Equipment
SR MFG provides sheet metal fabrication services for industrial machinery and equipment projects, turning your requirements for structural stability, dimensional accuracy, and consistent appearance into reliable manufacturing outcomes.
I am very glad to have gained their trust.
Why Does Industrial Equipment Require Precision Sheet Metal Fabrication?
Sheet metal parts used in industrial machinery typically face far more demanding operating and assembly conditions than standard cosmetic parts.
Take metal doors as an example. They need to meet dimensional requirements, but they also have to maintain proper opening and closing gaps and accurate installation positions for long-term use.
These issues cannot be solved by any single process alone. They depend on tight coordination across the entire manufacturing workflow.
That is why we focus on identifying and resolving the issues most likely to affect downstream assembly and delivery during the prototype and trial-fit stages.
Common Challenges in Industrial Equipment Manufacturing
| Issue Type | Typical Symptoms | Common Causes | Impact on the Project |
|---|---|---|---|
| Insufficient structural rigidity | Guard panels vibrate, resonate, or deform locally | Incorrect material thickness, inadequate reinforcement, poor joining design | Reduced equipment stability and weaker overall appearance |
| Assembly issues | Misaligned holes, uneven door panels, unlevel mounting surfaces | Inadequate springback control, accumulated weld distortion, unclear assembly datums | More trial fitting, rework, and on-site adjustment time |
| Inconsistent surface quality | Powder coating peel, scratches, corrosion, rough edge finish | Inadequate pretreatment, unsuitable finishing method, poor detail control | Affects acceptance, durability, and overall machine appearance |
| Unstable delivery schedules | Prototype delays, batch inconsistencies, major differences between repeat orders | Fragmented process chain, weak production coordination, excessive outsourcing | Slows development and disrupts transition to mass production |
| Rising costs | High unit cost, high rework rate, more labor input | Unoptimized structure, too many processes, poor material utilization | Impacts project budget and future profitability |
Why Choose SR MFG?
Because our role in your project goes well beyond fabrication alone.
Once we begin reviewing your drawings, we first identify the features most likely to affect assembly, weld distortion, appearance, and overall manufacturability. If these judgments are wrong at the start, they will not only disrupt the machining stage, but also undermine consistency in volume production.
For prototypes, we focus on the end result.
For volume production, we focus on consistency.
This approach is better suited to industrial equipment projects, because metal fabricated parts are rarely used on their own. In most cases, they have to fit seamlessly into a complete machine assembly.
Sheet Metal Solutions for Industrial Equipment
We can support your industrial equipment project with the following fabrication capabilities:

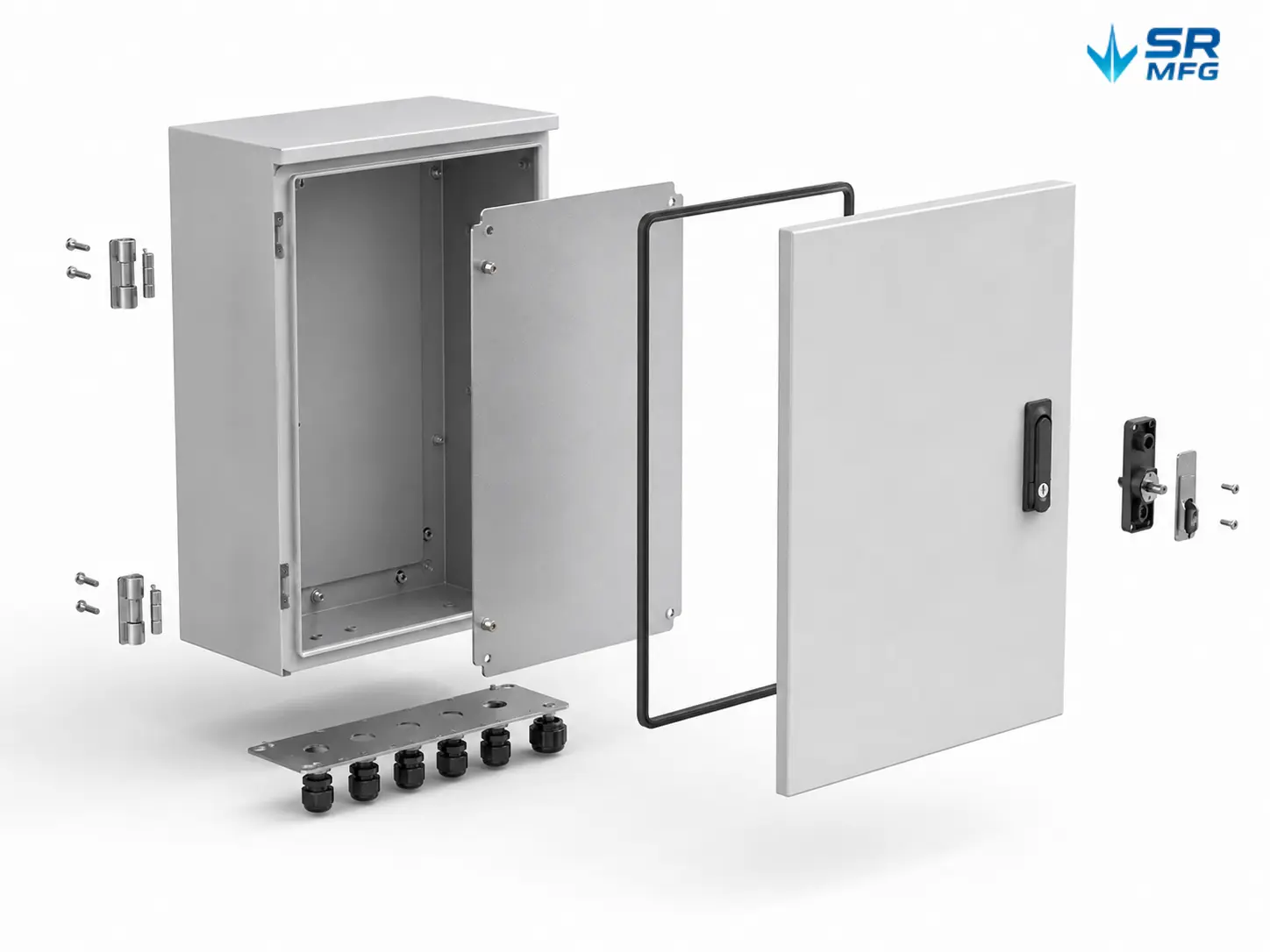

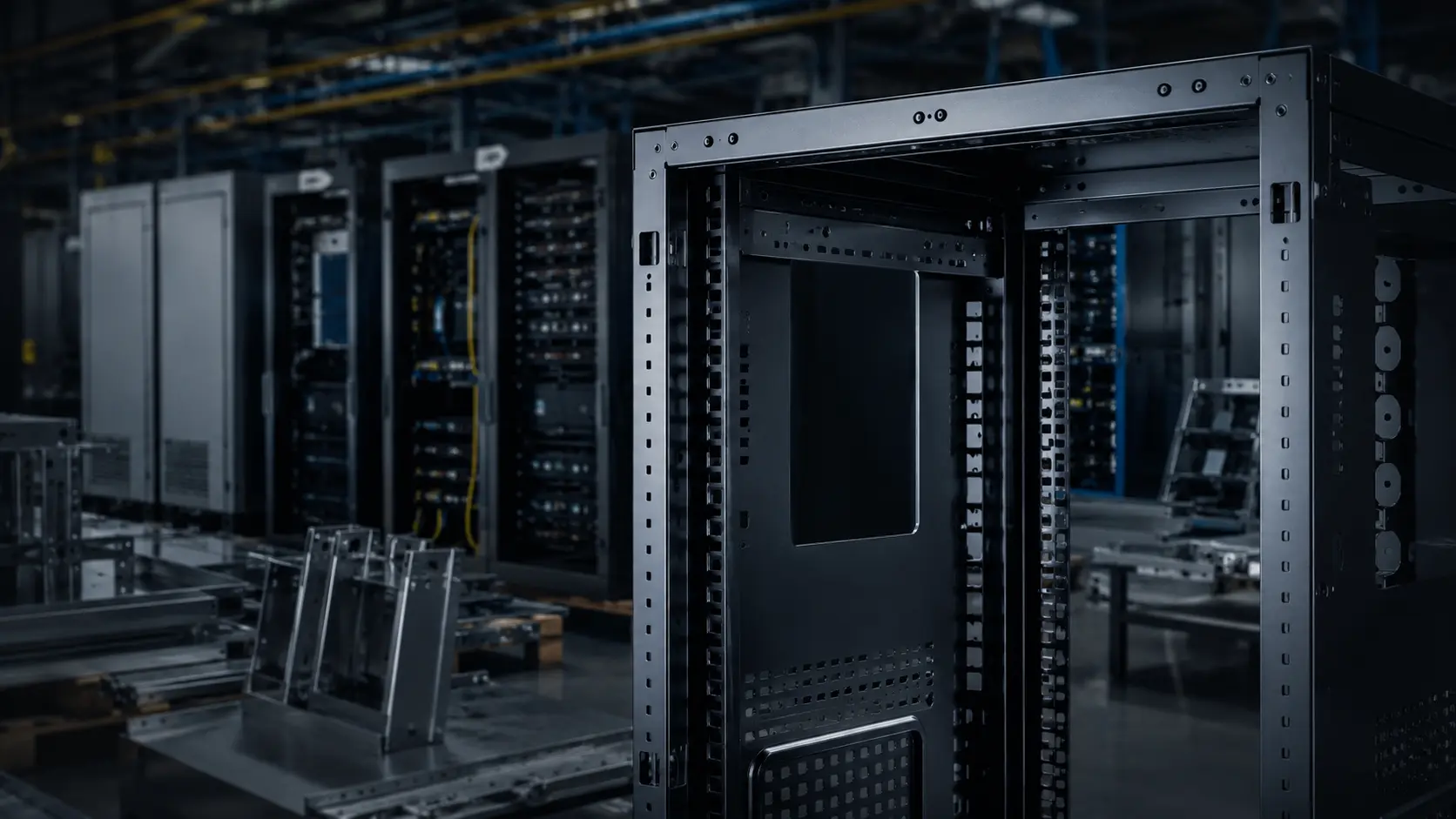

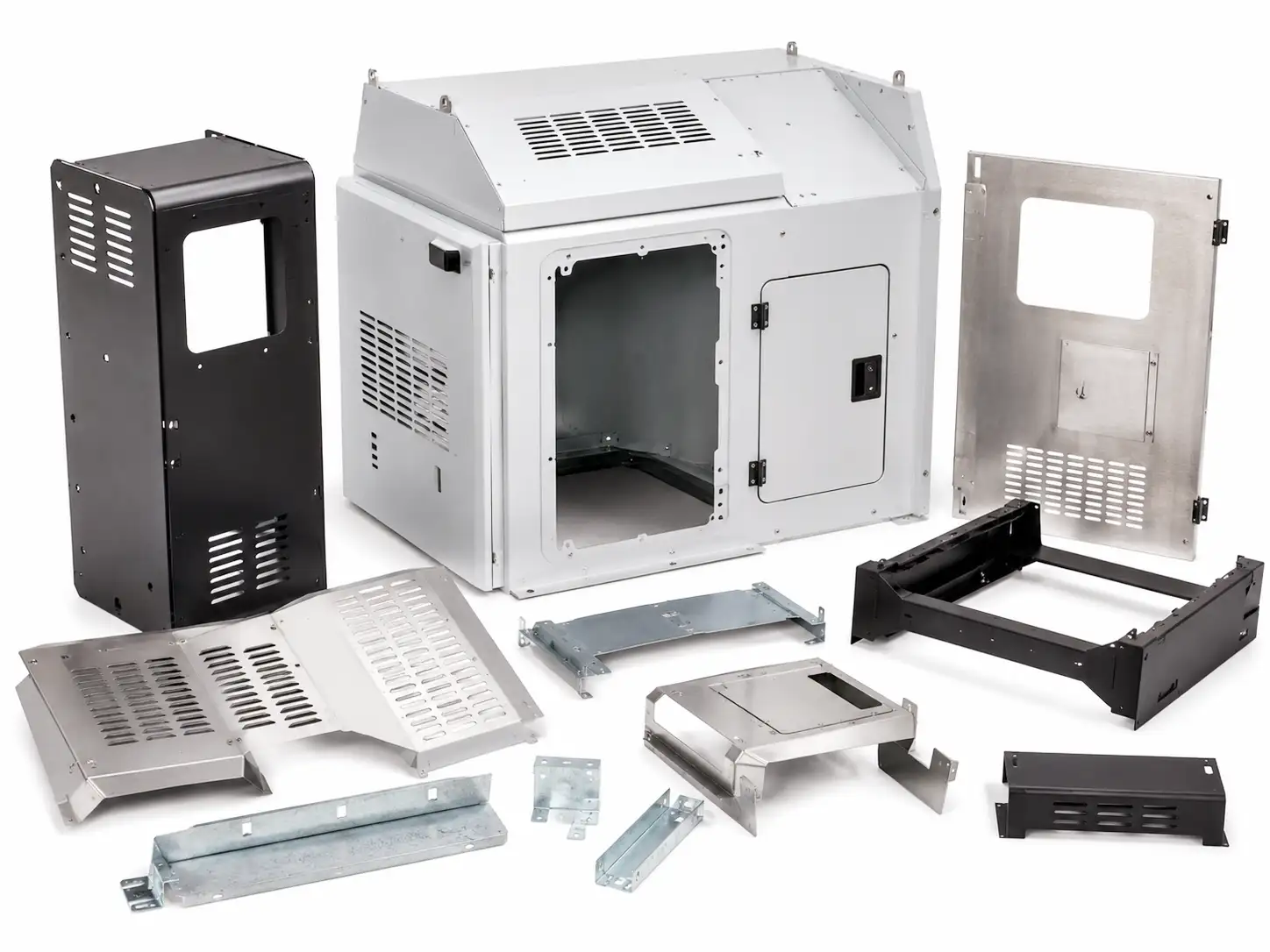

- Equipment covers and protective structures: outer panels, door fit-up, viewing areas, and service openings；

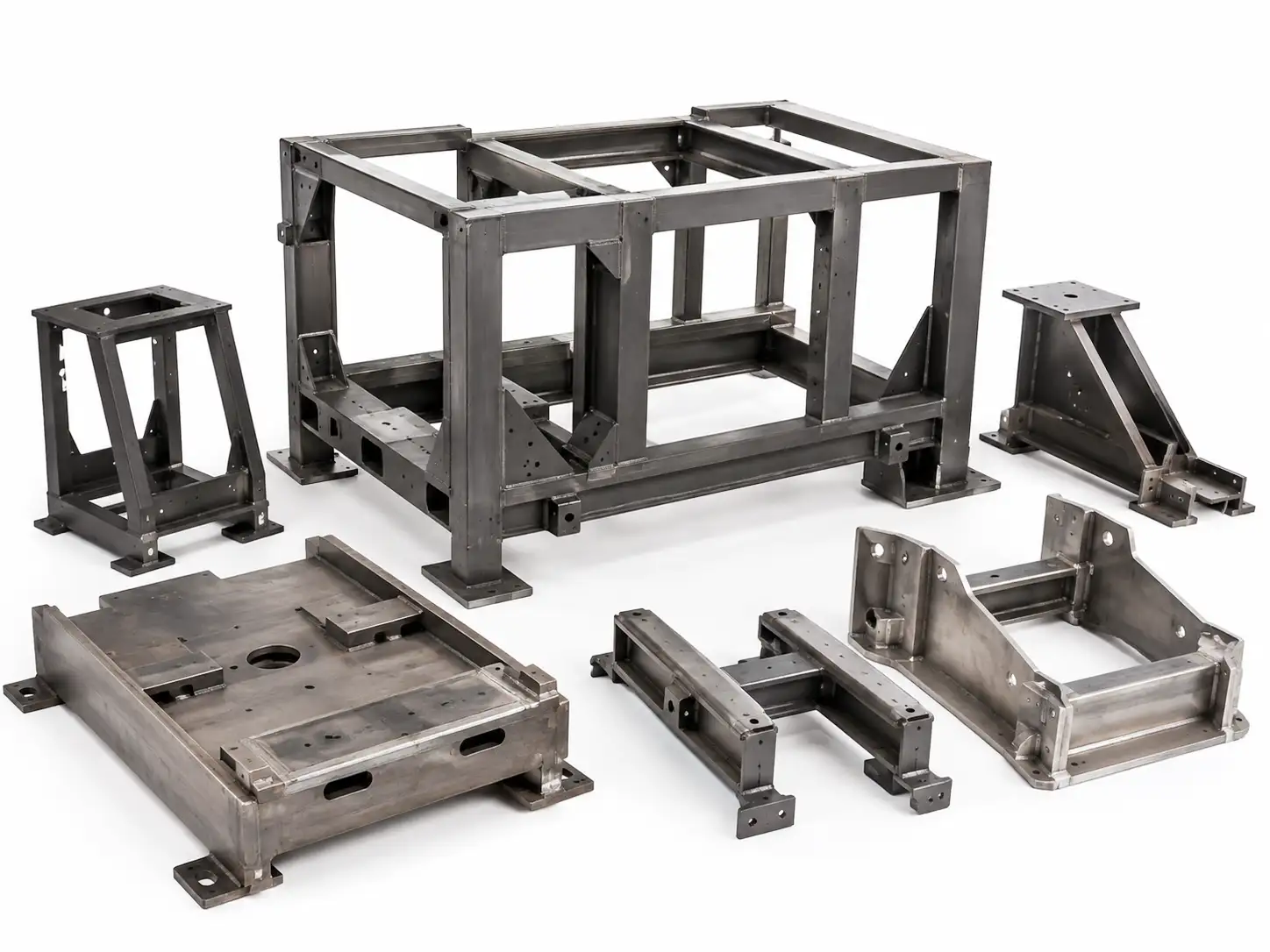

- Welded frames and machine bases: mounting references, load-bearing structures, and overall rigidity；

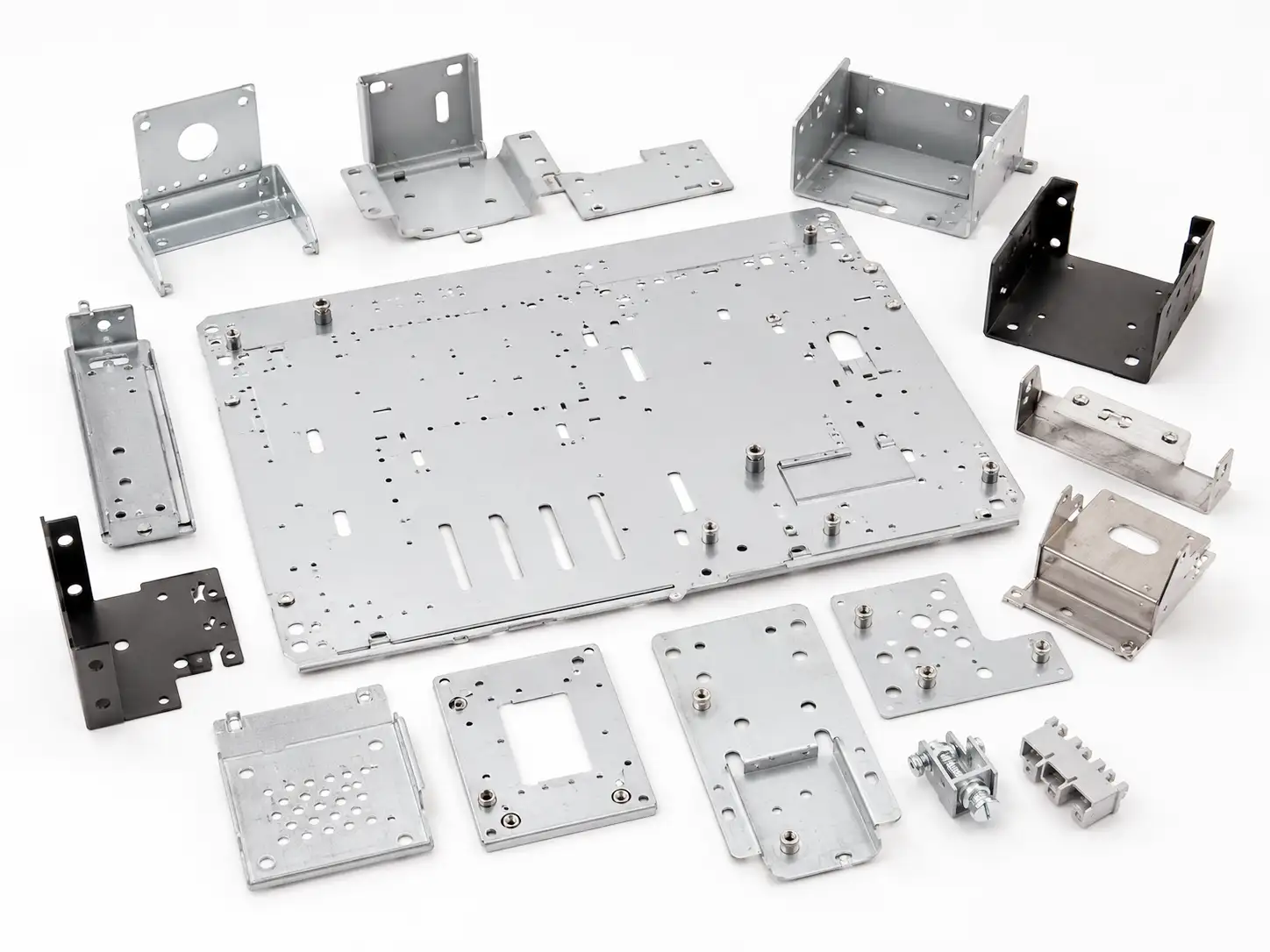

- Mounting plates and support parts: module installation, internal layout, and connection positioning；

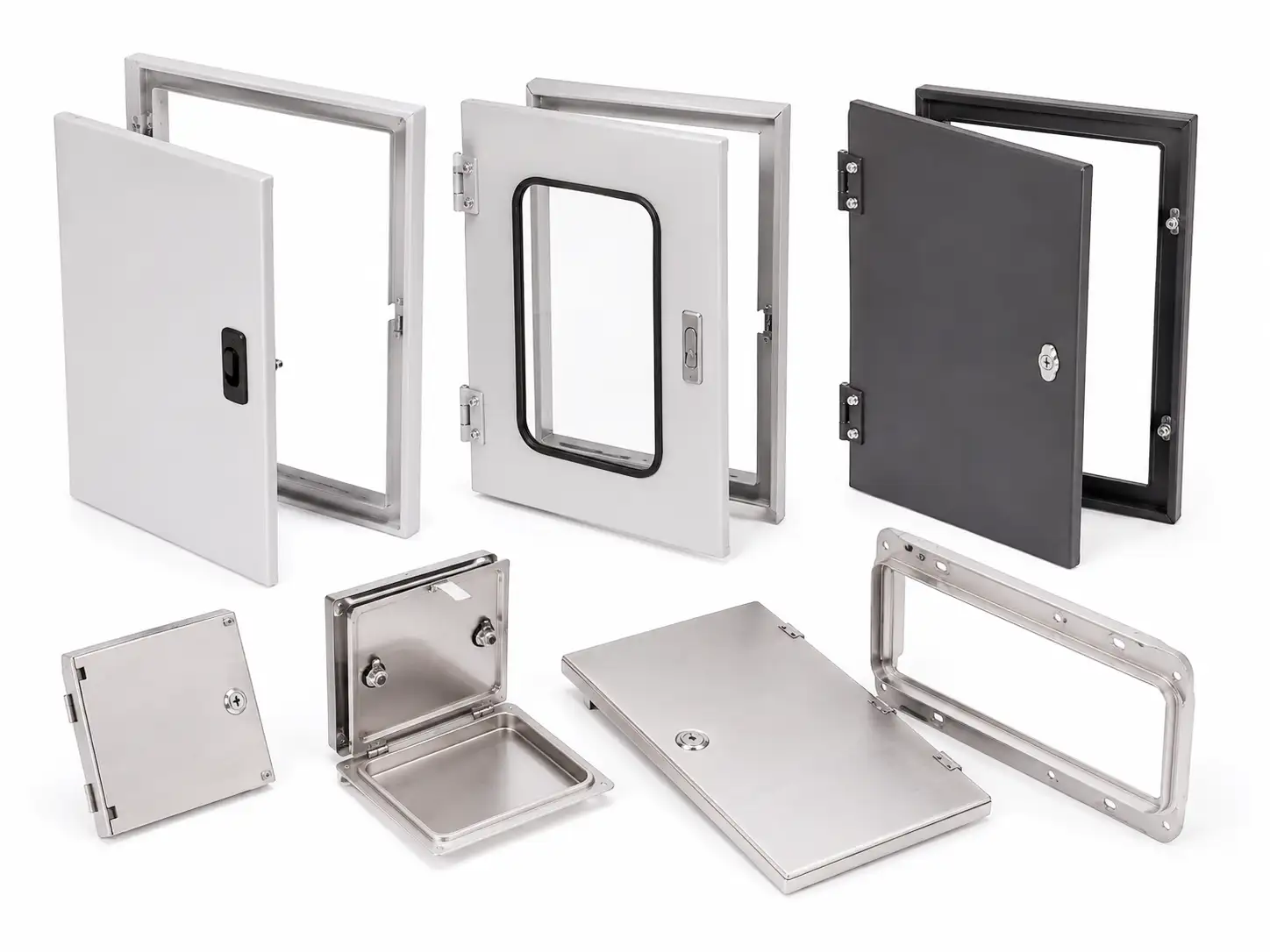

- Access doors and service structures: opening and closing function, lock installation, and maintenance convenience；

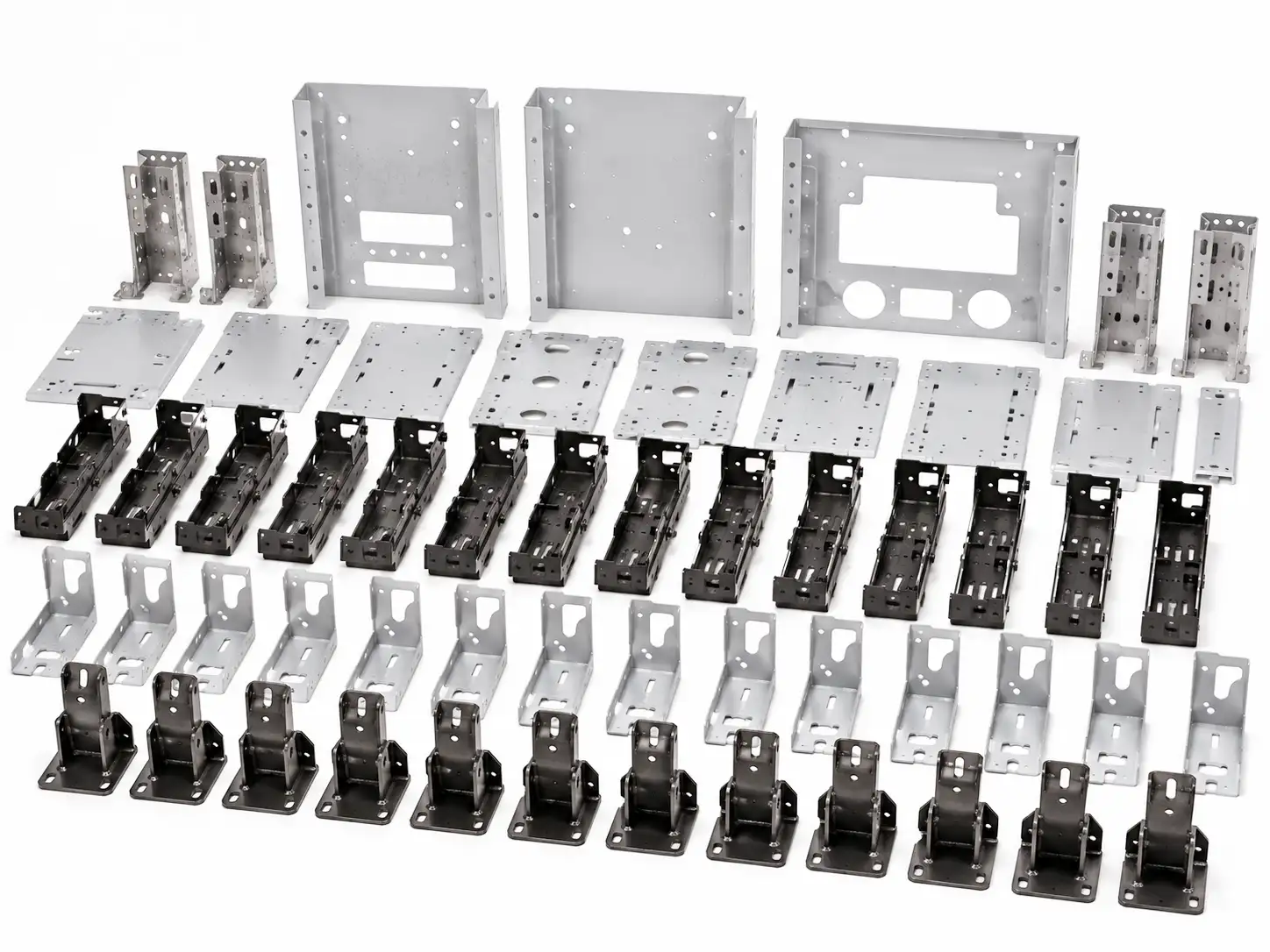

- Batch production of structural parts: coordinated processing schedules and delivery sequencing for multi-part projects；

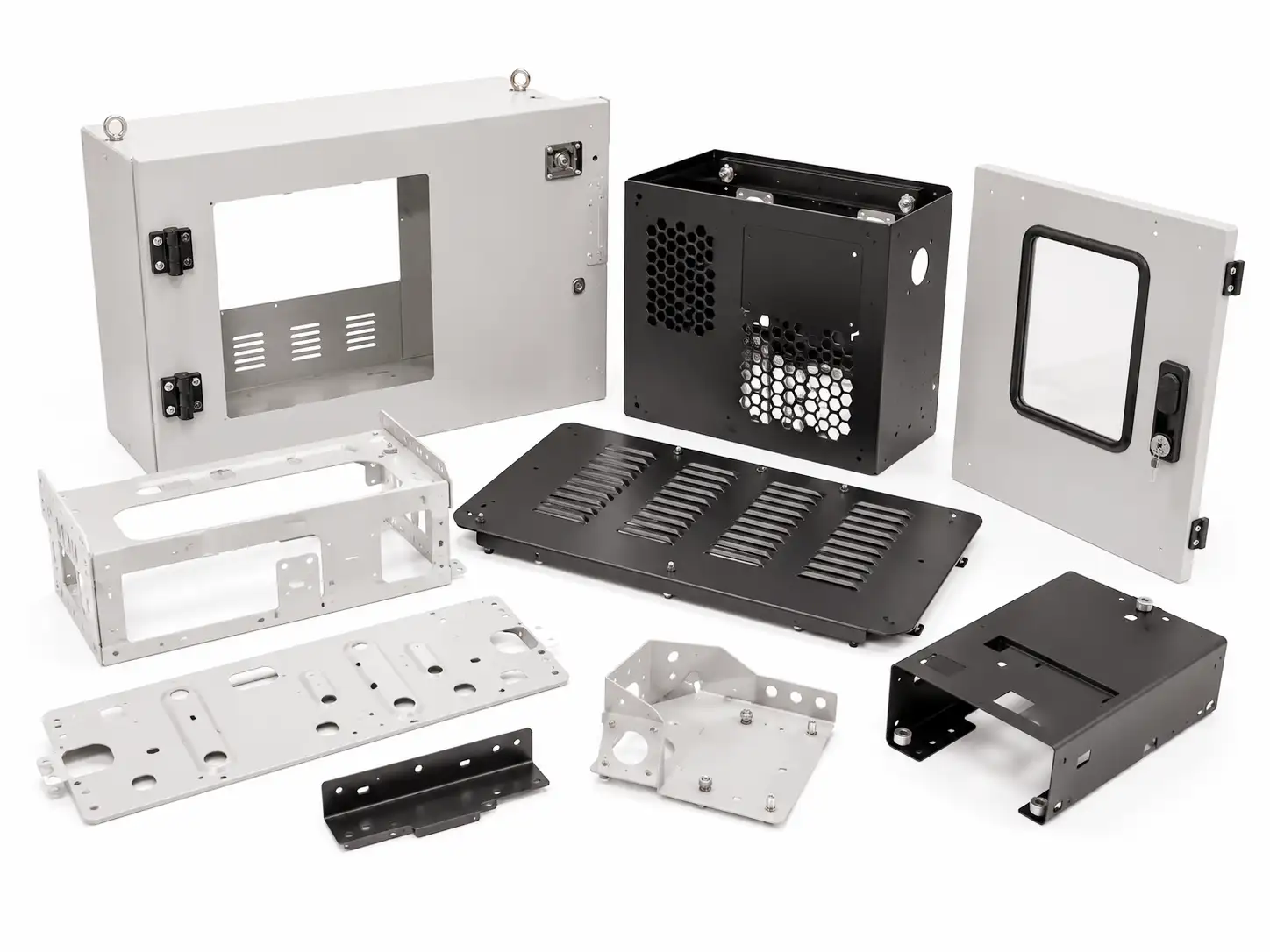

- Surface finishing and pre-assembly: reduced final assembly workload on the customer side and improved machine integration efficiency；
Single-part fabrication is only the foundation. Complete equipment projects depend far more on structural understanding, process coordination, and delivery control.
Our Manufacturing Capabilities

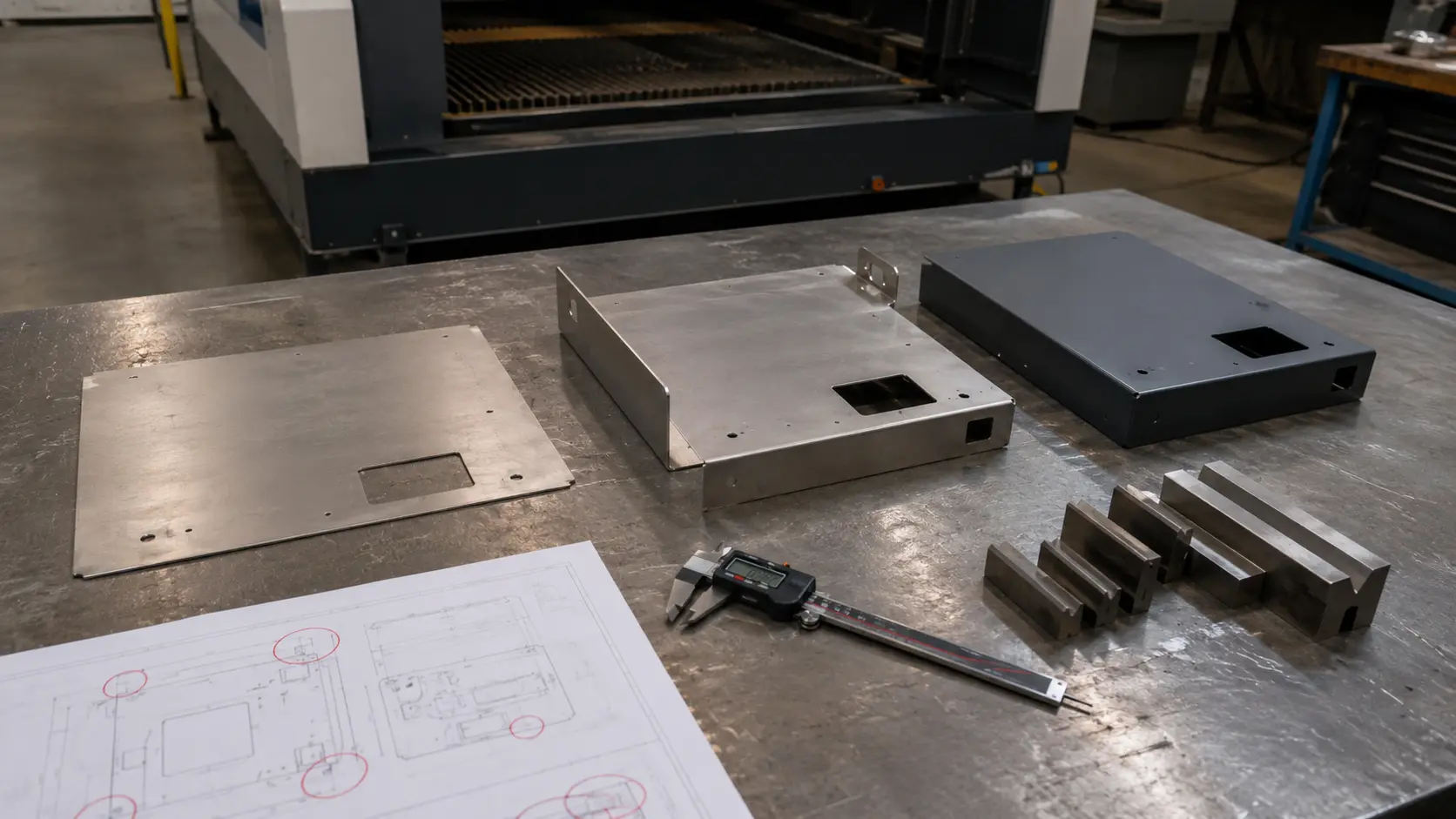

Laser Cutting
Laser cutting is well suited for machine enclosures, mounting plates, support plates, base blanks, and a wide range of custom-shaped structural parts. For projects involving multiple holes, long dimensions, complex contours, or thicker materials, cutting quality has a direct impact on downstream bending, welding, and assembly accuracy.
CNC Bending
Door panels, guards, enclosure panels, reinforced edges, and hemmed structures all require tight control of bend sequence and dimensions. If springback, edge distance, and assembly relationships are not properly managed at the bending stage, problems such as uneven doors, shifted hole positions, and poor edge alignment often show up during prototype assembly.
Precision Welding
For welded frames, machine bases, support components, and built-up assemblies, positioning, weld sequence, and post-weld correction all need to be considered together. If welding is not handled properly, the most common issues are mounting surface distortion, edge misalignment, and damaged assembly relationships.
Surface Finishing
In industrial equipment projects, surface finishing is about much more than color. Powder coating, wet painting, anodizing, and stainless steel finishing all affect wear resistance, corrosion protection, ease of cleaning, and final appearance. If finishing is not properly coordinated with earlier processes, prototypes and production batches can easily end up with color variation, unstable adhesion, or inconsistent details.
Assembly and Pre-Assembly Services
Many sheet metal parts used in industrial equipment are not ready for direct use after fabrication alone. PEM insertion, tapping, hinges, handles, locks, viewing windows, casters, seals, and standard hardware often need to be installed with the final assembly relationship in mind.
What Can We Manufacture?
We provide complete sheet metal fabrication services covering exterior panels, structural parts, welded assemblies, and pre-assembled components for industrial equipment applications.
Equipment Covers and Structural Components
- Machine tool enclosures, equipment guards, and access doors；
- Panels for automation equipment, module housings, and viewing window frames；
- Packaging equipment panels, operator-area covers, and closure panels；
Structural Supports and Base Components
- Welded frames, machine bases, and load-bearing structures；
- Support frames, mounting base plates, and reinforcement parts；
- Side panels, guide plates, and brackets for conveyor systems；
Mounting and Connection Parts
- Mounting plates, fixing tabs, and connection brackets；
- Hinge mounts, angle brackets, clamping plates, and stop parts；
- Support components for functional modules and internal brackets；
Stainless Steel and Application-Specific Components
- Enclosures and flow guide panels for food processing machinery
- Structural parts for medical equipment
- Corrosion-resistant parts for wet or washdown environments
Related Products
Material Selection Guide
Material selection mainly depends on the function of the part, its operating environment, and the downstream manufacturing process. The table below is for reference.
| Material Type | Common Grades | Key Properties | Best-Suited Equipment Parts | Recommended Use |
|---|---|---|---|---|
| Cold-Rolled Steel | SPCC, DC01 | Smooth surface, good formability, excellent paint compatibility | Covers, door panels, side panels, mounting plates, closure panels | Best for exterior parts and general thin-sheet structural parts |
| Carbon Steel | Q235B, S235 | Good strength and weldability, suitable for load-bearing structures | Bases, frames, support parts, reinforcements, welded frames | Better suited for structural components |
| Stainless Steel | SUS304, SUS316 | Strong corrosion resistance, suitable for wet, washdown, or clean environments | Food machinery enclosures, medical equipment structures, washdown equipment parts | 304 is typically preferred for standard corrosion-resistant applications |
| Aluminum Alloy 5052 | 5052 | Good formability, corrosion-resistant, suitable for general sheet metal bending | Lightweight guards, panels, aluminum housings, cover parts | Better suited for appearance parts and bent sheet metal parts |
| Aluminum Alloy 6061 | 6061 | Medium to high strength, corrosion-resistant, suitable for structural use | Support plates, connection parts, mounting arms, lightweight structural parts | Better suited for structural applications |
| Galvanized Steel | SGCC, SECC | Uniform surface, basic corrosion resistance, paintable | Closure panels, partitions, internal structural parts, visible indoor components | Suitable for standard equipment parts |
Material Application Comparison
| Item | SPCC Cold-Rolled Steel | Q235B Carbon Steel | SUS304 Stainless Steel | 5052 Aluminum Alloy | 6061 Aluminum Alloy |
|---|---|---|---|---|---|
| Formability | Good | Moderate | Moderate | Good | Moderate |
| Weldability | Good | Good | Good | Moderate | Good |
| Surface Finishing Compatibility | High | High | Brushed / sandblasted / mill finish | Anodized / painted | Anodized / painted |
| Typical Parts | Door panels, side panels, mounting plates | Bases, frames, support parts | Corrosion-resistant structural parts | Lightweight guards, housings | Lightweight structural parts, support plates |
| Main Project Considerations | Flatness, bending, painted finish quality | Load capacity, weld distortion, mounting references | Corrosion resistance, cleanability, surface consistency | Weight, formability, corrosion resistance | Strength, weight, structural use |

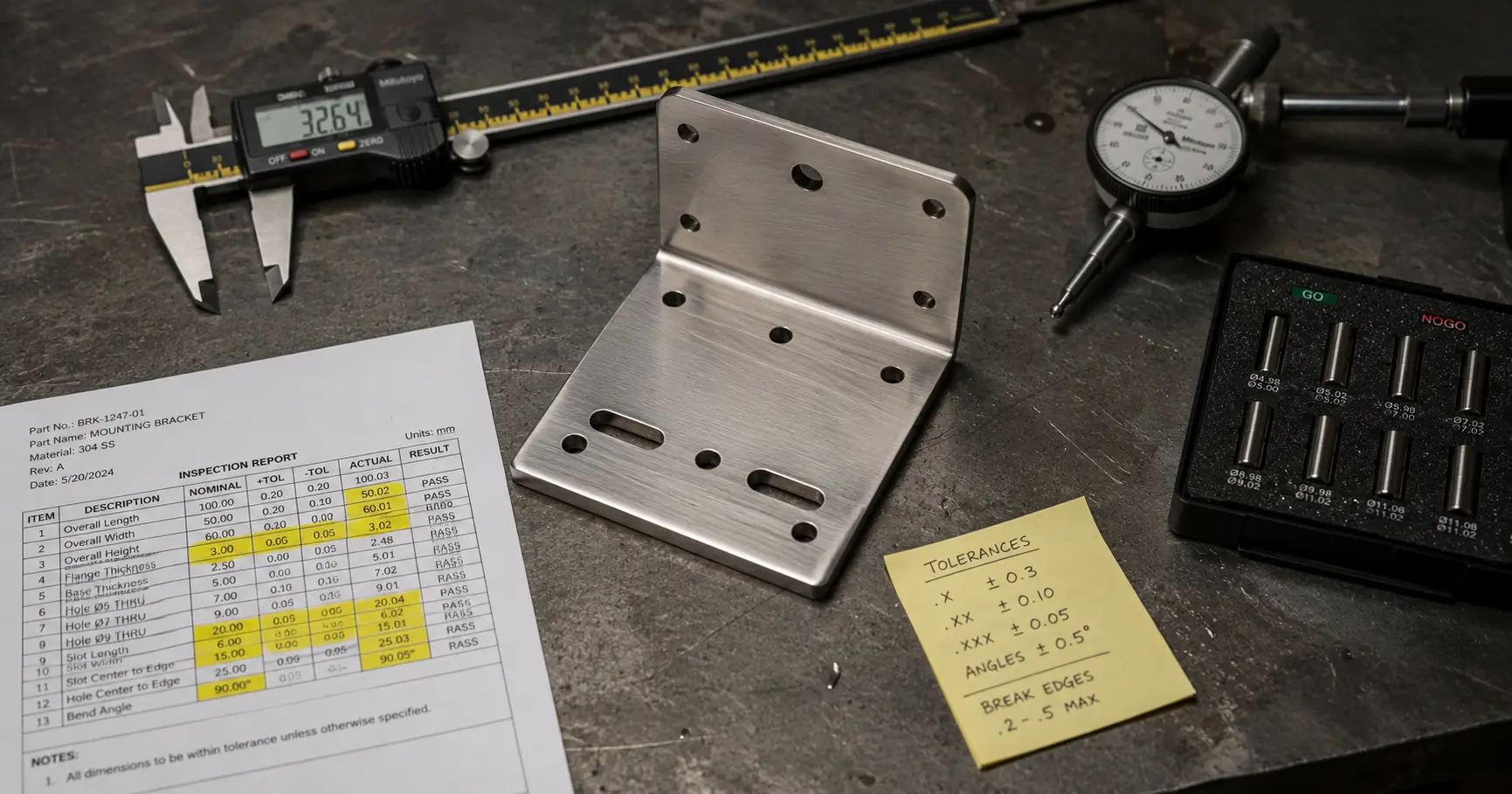

Quality Control Program
We do not leave inspection until the final step. Any factor that could affect the product is checked throughout the manufacturing process in advance. We have also established a complete quality traceability system, with strict inspection records covering every stage from incoming raw materials to final shipment. This ensures that every batch delivered to the customer is fully traceable and ready for smooth acceptance.
Lead Time and Cost Control
When it comes to lead times and cost control in sheet metal fabrication, we follow an approach that is practical, disciplined, and aligned with the realities of industrial equipment manufacturing.
Production lead time depends on process complexity, degree of customization, and order volume:
- Prototype parts: 3–5 working days for simple structures; 6–10 working days for complex welded assemblies or multi-part projects
- Small batches (1–50 units): 7–15 working days for standard structures; 10–20 working days for parts requiring welding and surface finishing

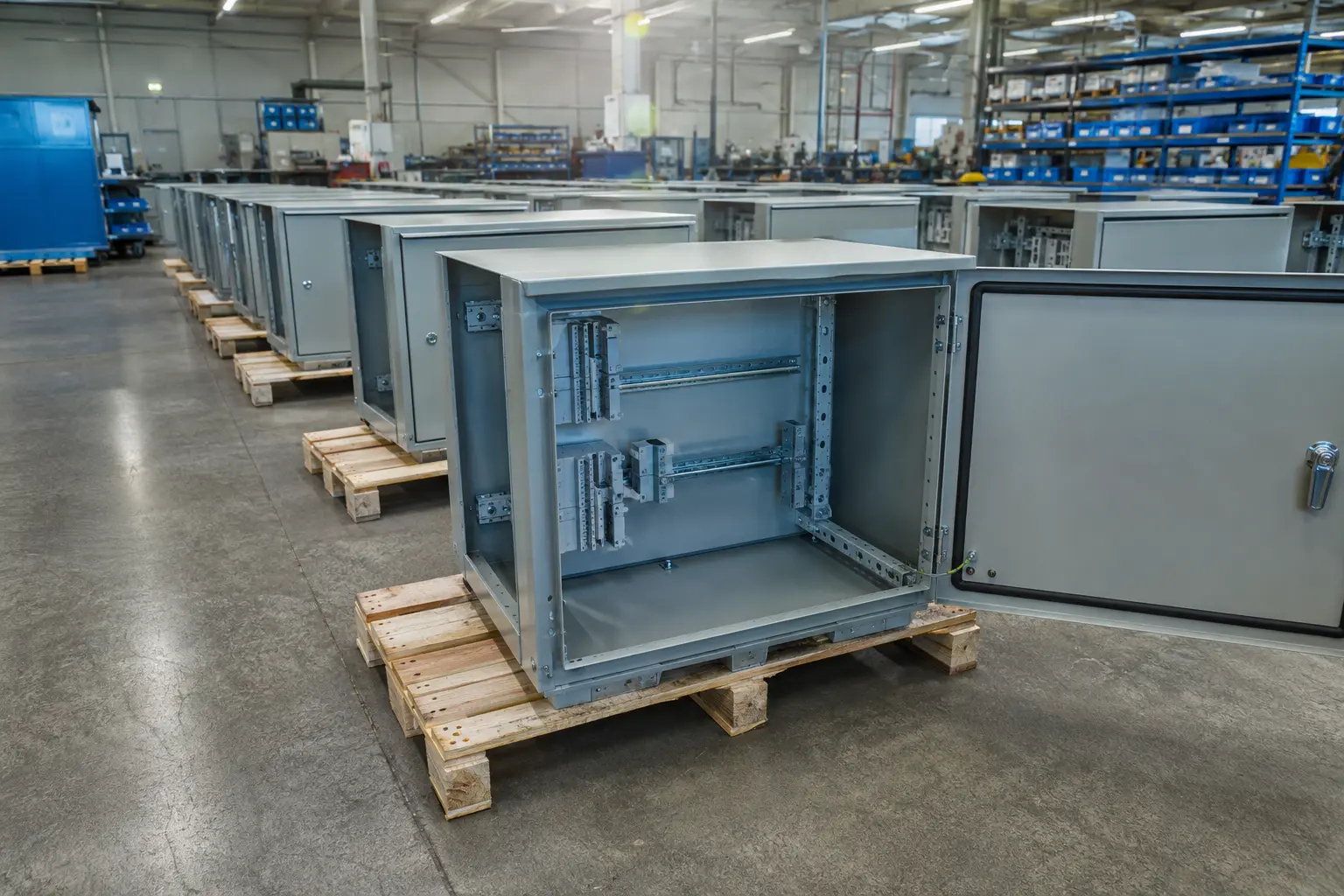

- Volume production (50+ units): evaluated based on structural complexity, welding workload, and finishing requirements, and typically 20%–30% faster than small-batch production
Note: If the required material is not in stock, an additional 15 working days will usually be needed.
For urgent orders, we can prioritize key production stages, although an expedite charge of 20%–50% may apply. To maintain both quality and delivery consistency, we also confirm capacity in advance with our external suppliers for outsourced processes such as welding and coating.
In industrial equipment projects, cost control is rarely about raw material price alone. More often, it is driven by structural complexity, process efficiency, and how well pre-assembly is planned. All of these factors affect total manufacturing cost.
Throughout the project, we help reduce unnecessary spending through structural optimization, process improvements, and better production coordination.
FAQs
Start Your Project Today
Whether you are working on machine tool enclosures, automation equipment guards, conveyor system structural parts, packaging machine panels, welded frames, equipment bases, or complete sheet metal assemblies, SR MFG can provide the right manufacturing support.

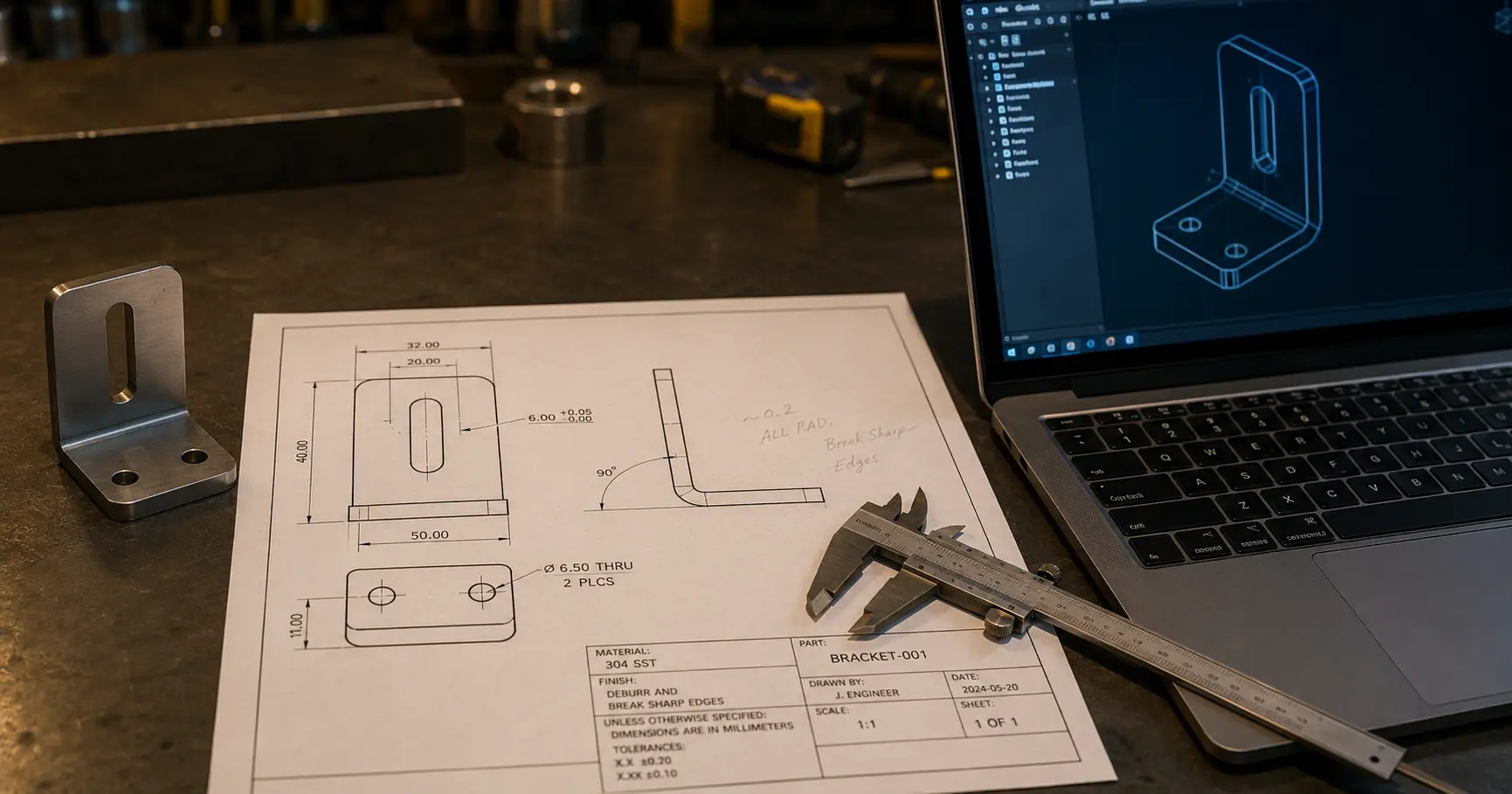

Once you upload your drawings or 3D files, we will first provide a manufacturability review, process recommendations, and a proposed delivery plan.
