Outdoor Distribution Box Enclosures
Our custom outdoor weatherproof electrical enclosures are manufactured using precision sheet metal fabrication processes. They are designed for outdoor power distribution, lighting control, solar energy equipment, telecommunications systems, and industrial field installations.
- Enclosure Construction: Sheet metal enclosures fabricated through laser cutting, CNC bending, and welding, with gasket-sealed doors.
- Material Options: Powder-coated carbon steel, galvanized steel, and stainless steel.
- Environmental Protection: Enclosures can be engineered to meet project-specific IP protection ratings, providing protection against rain, dust, UV exposure, and washdown conditions as required.
- Mounting Options: Wall-mounted, pole-mounted, and floor-standing configurations, with optional mounting brackets and internal mounting panels.
- Internal Components: Mounting panels, DIN rail provisions, and cable entry plates.
- Customization: Enclosure dimensions, knockouts, viewing windows, locking systems, RAL powder-coating colors, and custom nameplates.
Send us your technical drawings or key dimensions for a manufacturing quotation. We support both prototype development and volume production.
Product Details
| Specification | Available Options |
|---|---|

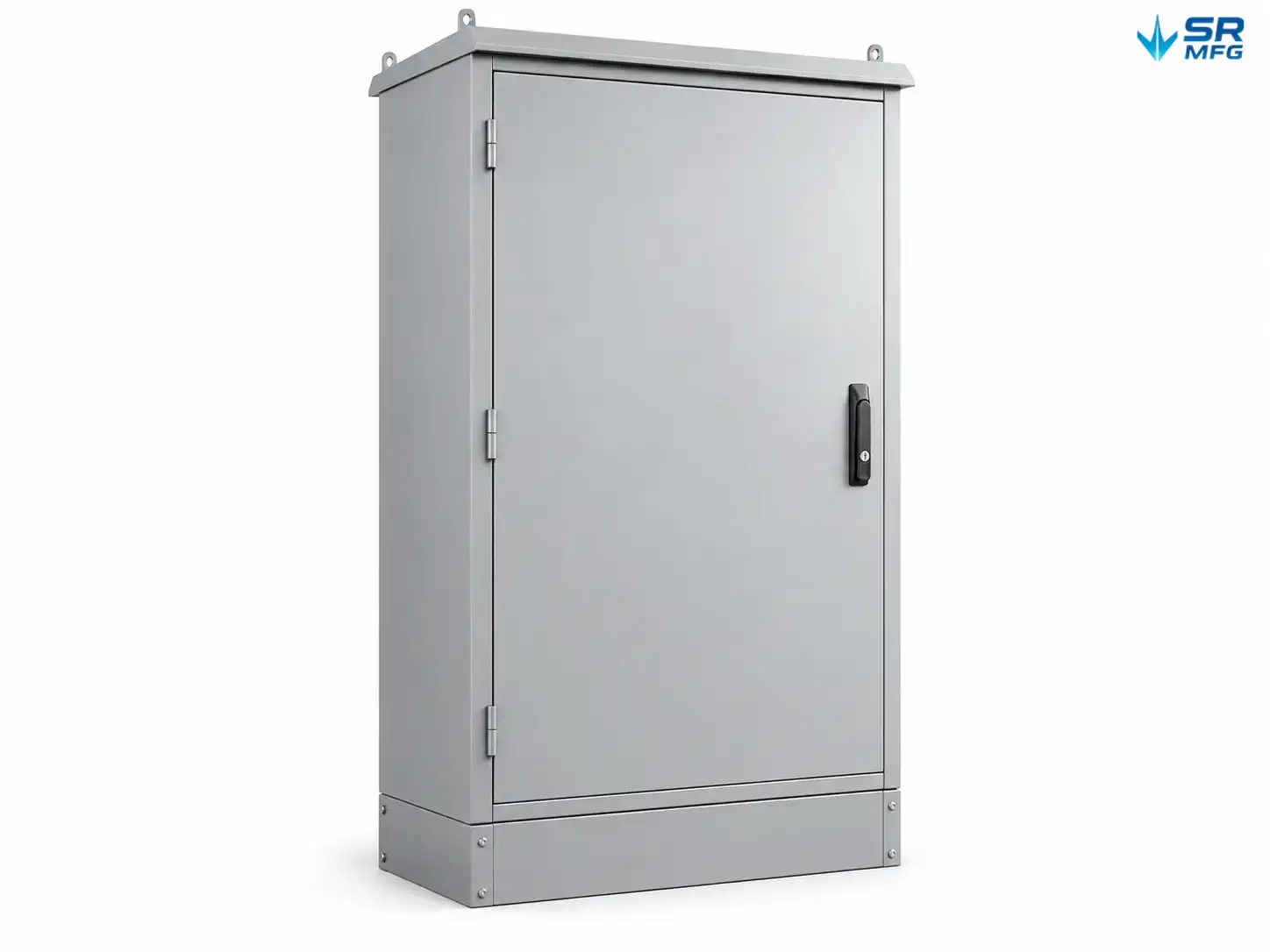

| Enclosure Type | Wall-mounted enclosure / Pole-mounted enclosure / Floor-standing cabinet / Freestanding cabinet |
| Enclosure Material | Powder-coated carbon steel / Galvanized steel / Stainless steel |
| IP Protection Rating | IP54 / IP55 / IP65 / IP66 (subject to enclosure design and project confirmation) |
| NEMA Enclosure Type | Project-specific; common requirements include NEMA 3R / 4 / 4X |

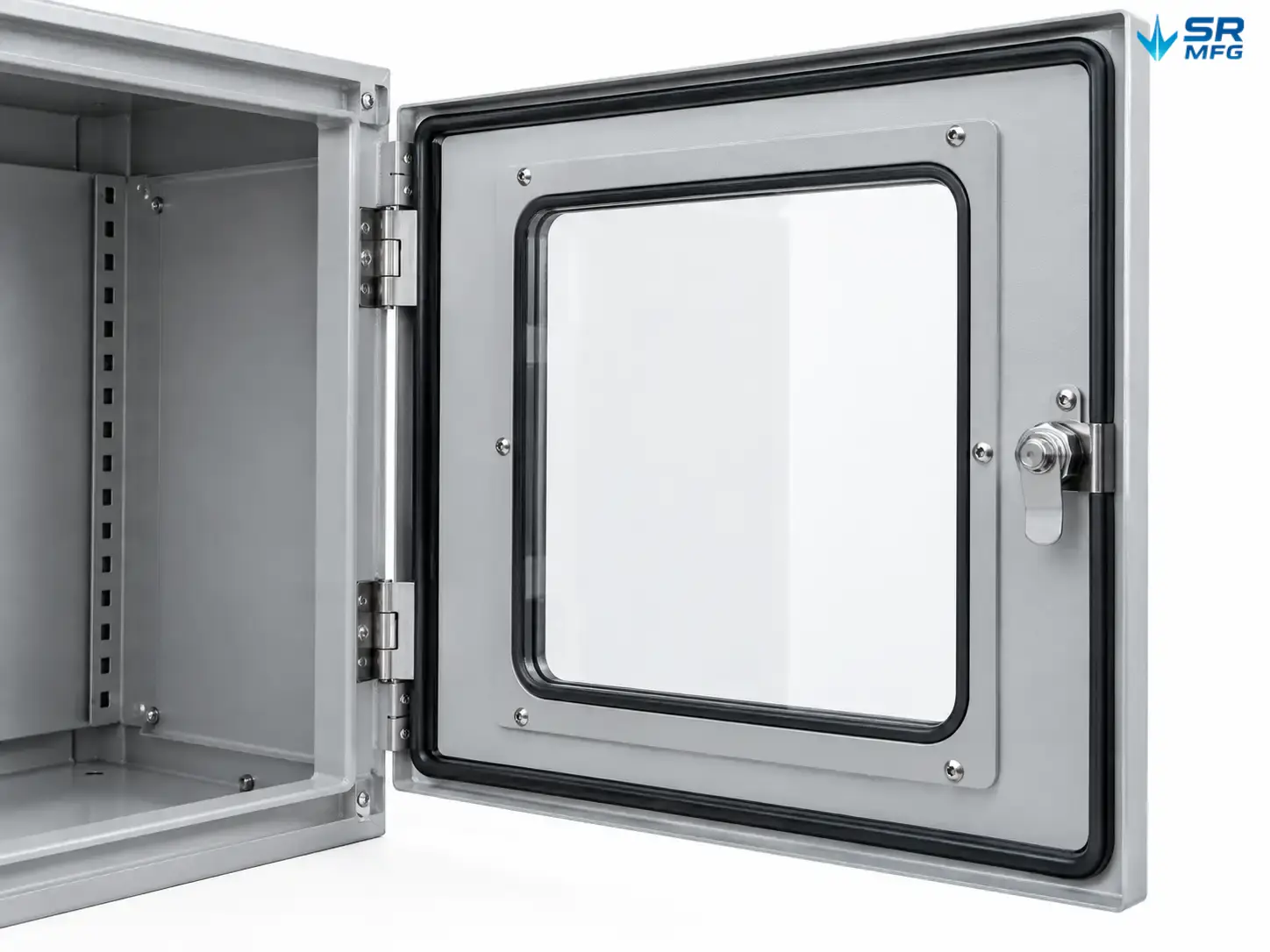

| Door Configuration | Hinged solid door / Hinged door with viewing window / Removable cover |

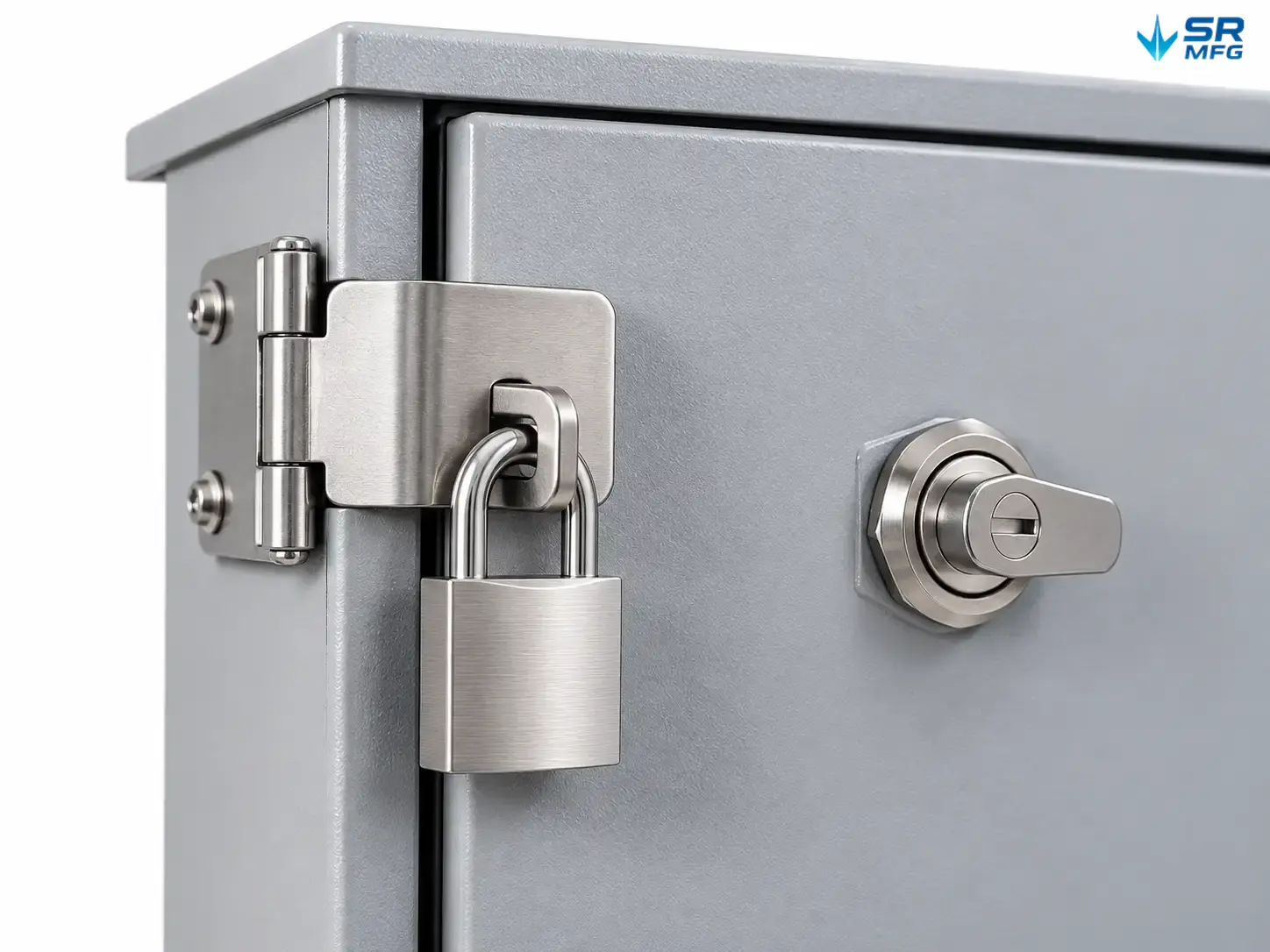

| Locking System | Quarter-turn latch / Padlock hasp / Three-point locking system / Tamper-resistant screws |
| Mounting Configuration | Wall-mount brackets / Pole-mounting hardware / Floor-standing base / Mounting flanges |
| Internal Mounting | Mounting panel / DIN rail mounting provisions / Empty enclosure / Preassembled internal layout |
| Cable Entry | Bottom cable entry plate / Side cable entry plate / Cable gland openings or knockouts |
| Surface Finish | Powder coating (custom RAL colors) / Hot-dip or electro-galvanizing / Brushed stainless steel / Custom finishes |
| Dimensions | Standard size ranges or custom height × width × depth according to drawings |

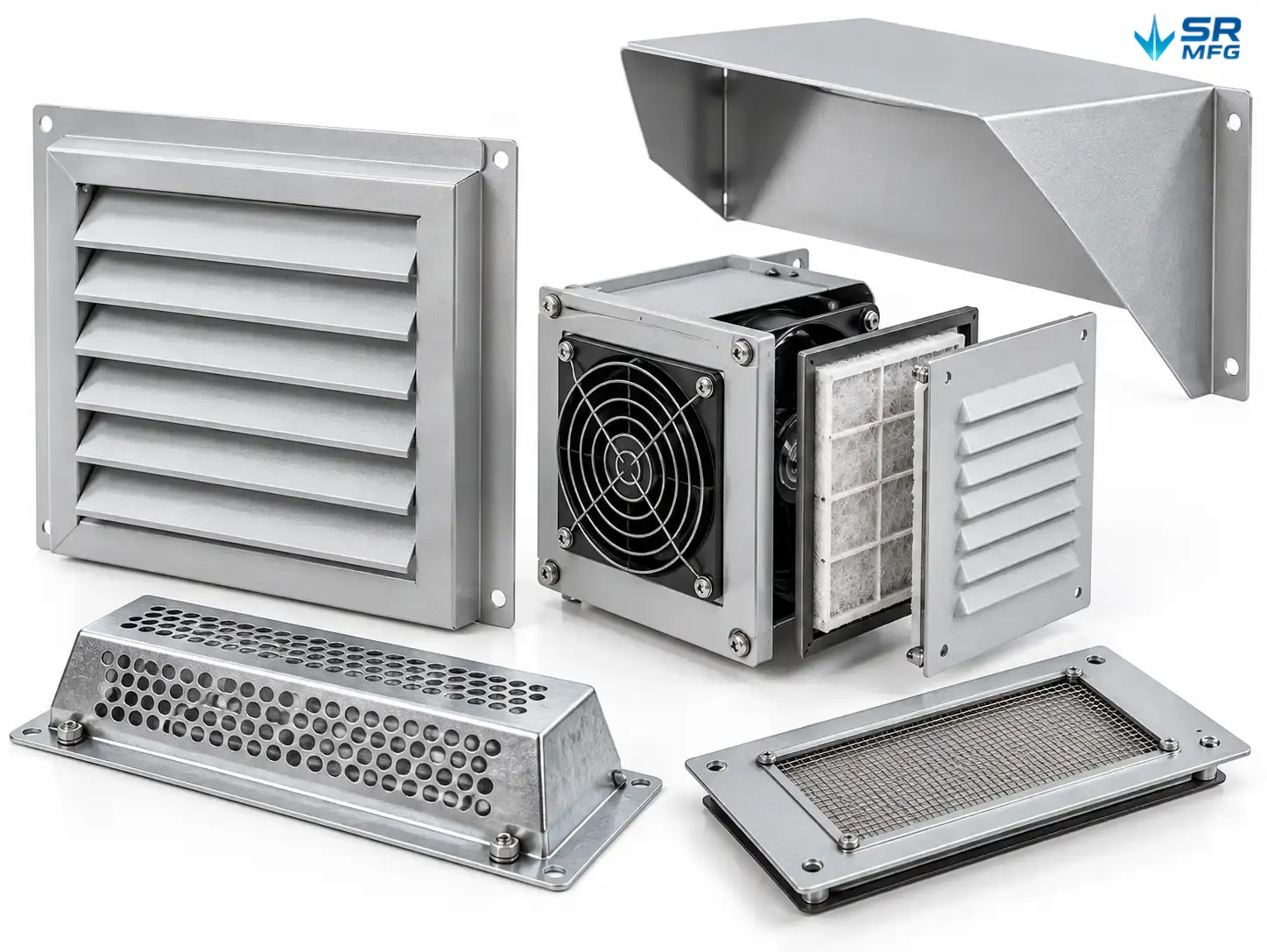

| Environmental Control Options | Passive ventilation openings / Fan-and-filter units / Enclosure heaters / Rain hoods / Sunshades |
| Manufacturing Processes | Laser cutting / CNC bending / Welding / Drilling and tapping / Assembly |
| Customization Options | Custom cutouts, viewing windows, nameplates, special locks, internal brackets, and coating colors |
| Accepted Drawing Formats | STEP / DXF / DWG / PDF / SolidWorks |
| Order Types | Prototypes / Small production runs / Repeat volume production |
| Lead Time | Confirmed after drawing review and production capacity assessment |

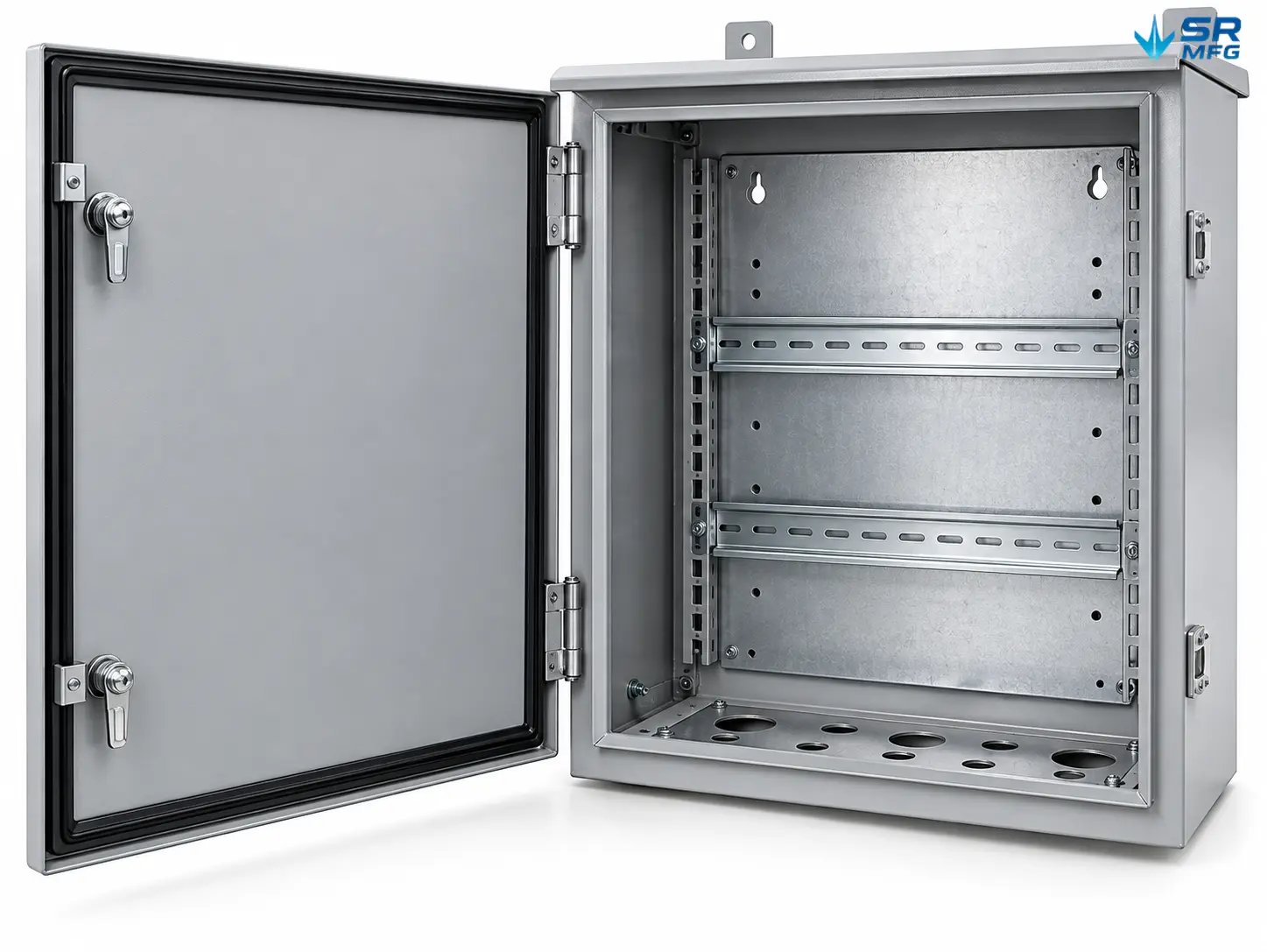

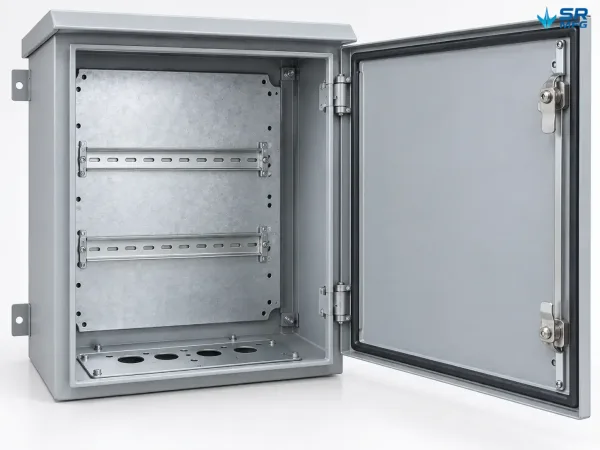

Shows the open interior of an outdoor electrical enclosure with mounting panel, DIN rail provisions, and cable entry plate aligned with the specification table.
Outdoor Electrical Enclosures: Engineered for Demanding Outdoor Environments
Outdoor electrical systems require reliable metal enclosures that protect internal components from rain, dust, and debris while allowing safe and convenient access for maintenance.
Our outdoor electrical enclosures are manufactured using precision sheet metal fabrication techniques, making them suitable for projects where structural strength, environmental protection, and long-term durability are essential.
Compared with many plastic enclosure designs, metal enclosures can provide greater structural rigidity, improved resistance to mechanical impact, and longer service life when properly designed and protected for the operating environment.
Each enclosure can be manufactured to meet specific project requirements, including:
- Wall-mounted lighting control enclosures
- Pole-mounted solar equipment enclosures
- Telecommunications junction boxes
- Outdoor electrical distribution enclosures
- Industrial outdoor control cabinets
Our standard product configurations accommodate common dimensions and internal layouts. We also provide fully customized enclosure sizes, cutout locations, and internal mounting structures based on customer drawings.
Why Choose Sheet Metal Enclosures for Outdoor Equipment?

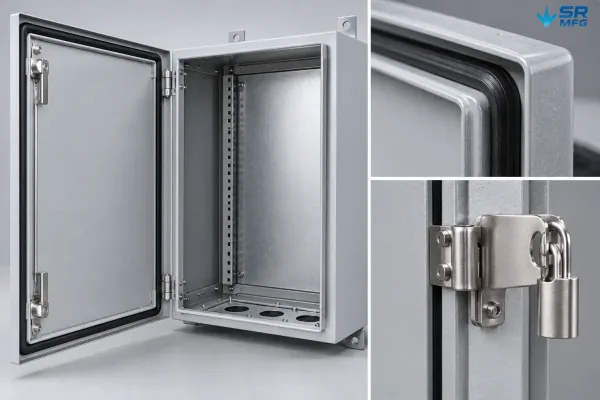

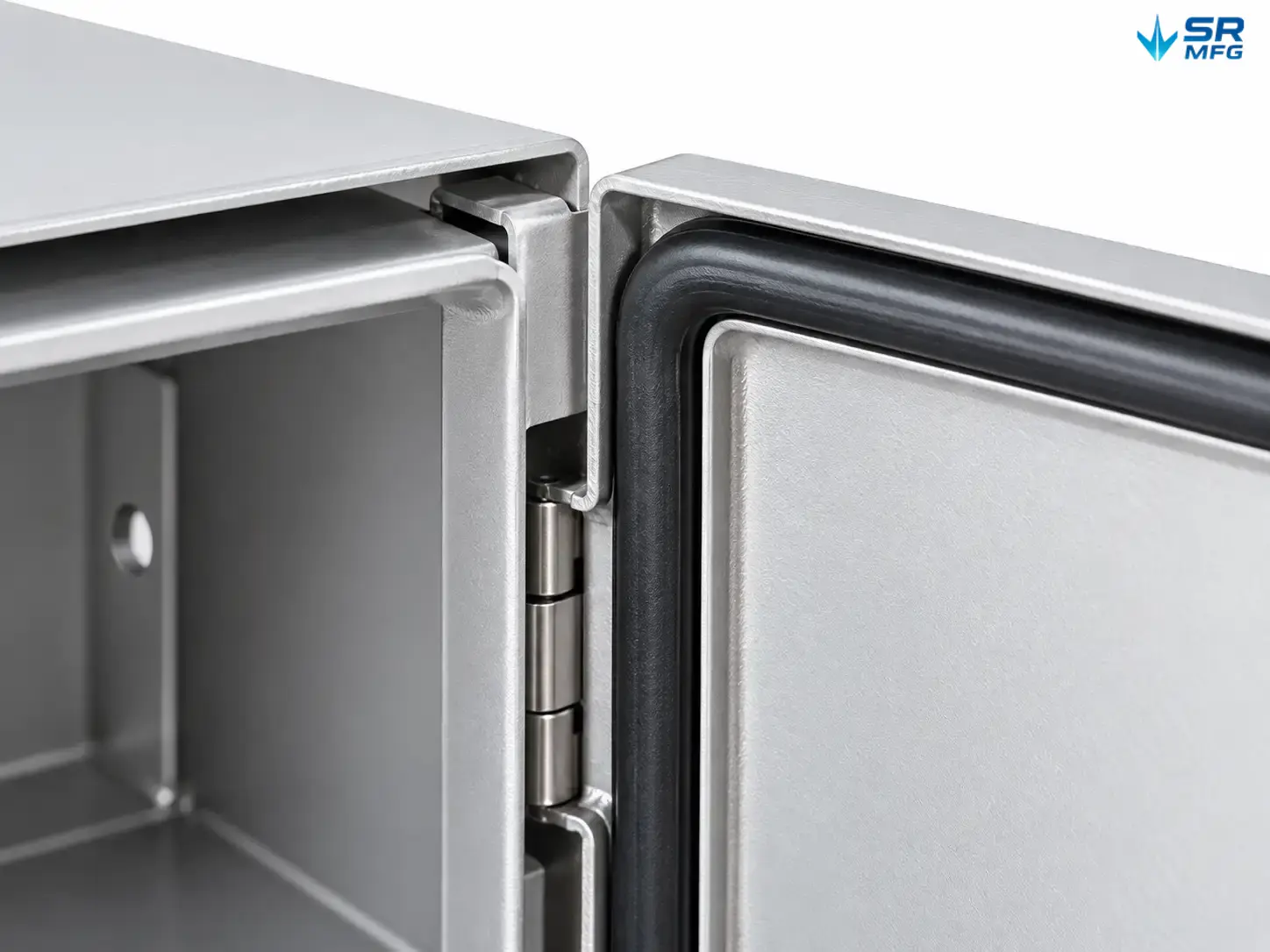

Highlights sheet-metal construction, perimeter gasket sealing, reinforced door edges, and access hardware used to address outdoor wind, rain, dust, and security loads.
| Outdoor Operating Challenge | How Sheet Metal Enclosures Address It |
|---|---|
| Wind Loads and Mechanical Impact | Formed sheet metal construction and reinforced doors help minimize deformation and denting. |
| Rain and Dust Ingress | Continuous sealing gaskets, overlapping door designs, and sealed cable entry points help prevent water, dust, and debris from entering the enclosure. |
| UV Exposure and Weathering | Appropriate powder coatings, galvanized steel, or stainless steel help limit coating degradation and surface corrosion. |
| Unauthorized Access | Padlock hasps, three-point locking systems, and tamper-resistant fasteners help control access to electrical components. |
| Heat and Condensation | Optional ventilation openings, fan-and-filter units, enclosure heaters, and protective rain hoods help manage internal environmental conditions. |
Metal construction also allows for welding, tapping, and precision-machined mounting holes, providing greater flexibility for custom equipment installations.
For applications involving heavy internal electrical components or frequent mounting adjustments, sheet metal enclosures offer practical advantages in structural support and manufacturing flexibility.
Electrical Enclosure Structural Design

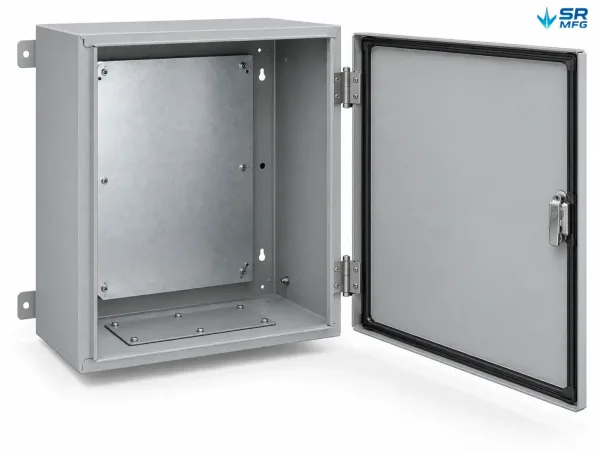

Shows how the enclosure body, hinged door, internal mounting panel, and cable entry system fit together as one assembly.
A reliable outdoor electrical enclosure requires more than a sealed metal box. The door, enclosure frame, internal mounting panel, and cable entry system must be designed to work together.
Key structural considerations include:
- Enclosure Body and Door: Formed or welded sheet metal construction with continuous perimeter gaskets and overlapping door edges to support effective environmental sealing.
- Hinges and Locking Hardware: Hinges selected according to door weight, with locking mechanisms designed to provide consistent gasket compression.
- Internal Mounting: Removable mounting panels, DIN rail provisions, and custom brackets for circuit breakers, terminal blocks, controllers, and other electrical components.

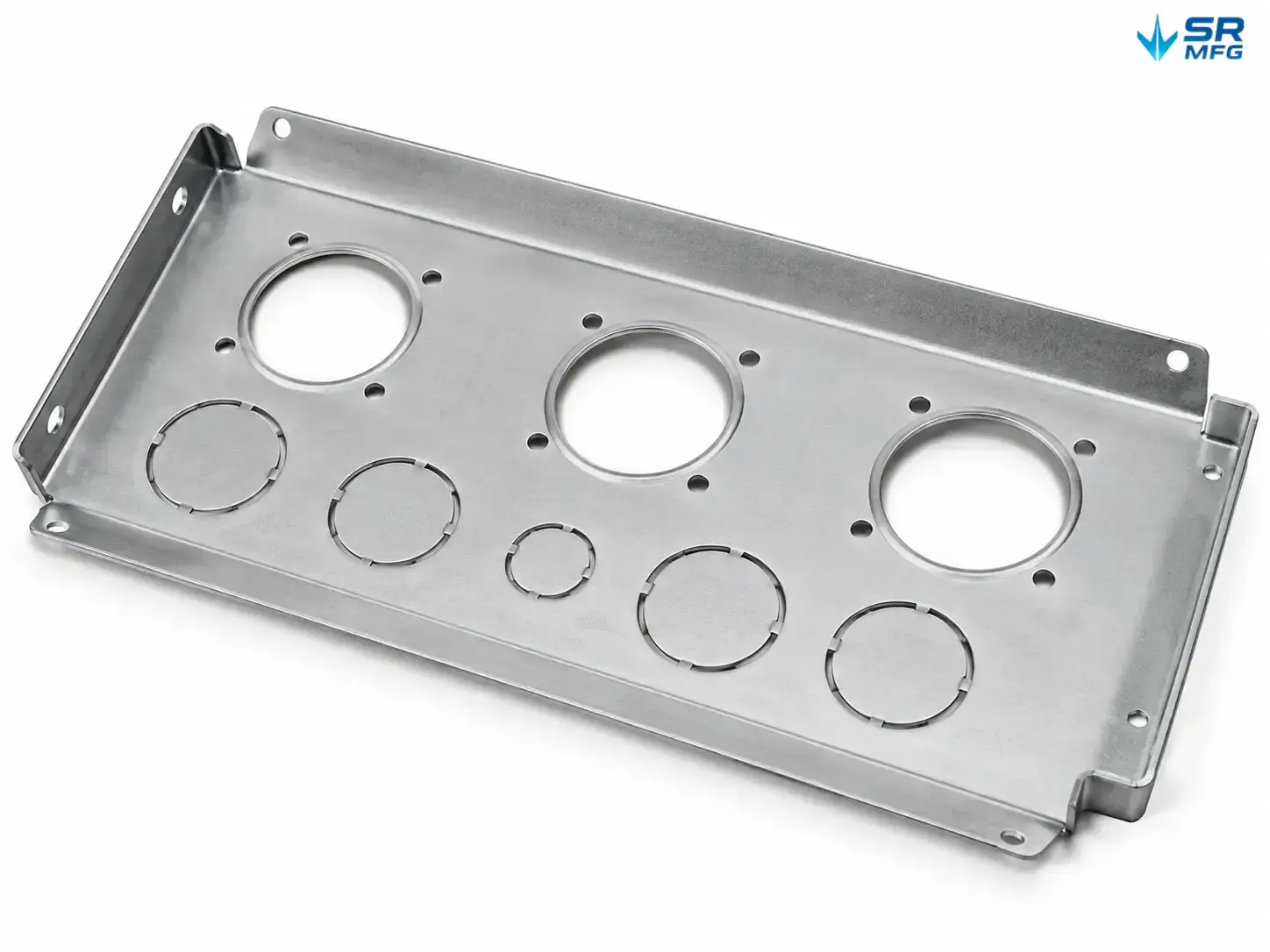

- Cable Management: Bottom or side entry plates, cable gland openings, and conduit knockouts positioned according to the required cable routing layout.
- Maintenance Accessibility: Door opening angles and internal clearances designed to provide sufficient working space for inspection, servicing, and component replacement.
Before fabrication begins, we review customer installation drawings to confirm hinge orientation, lock positioning, and cable entry locations.
This helps ensure that the finished enclosure is compatible with the intended equipment layout and field installation requirements.
Material Selection and Surface Protection

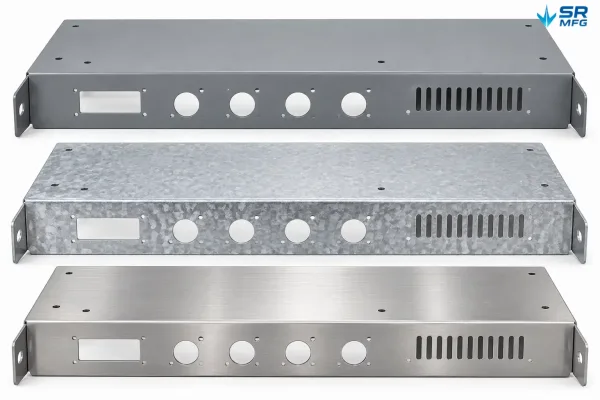

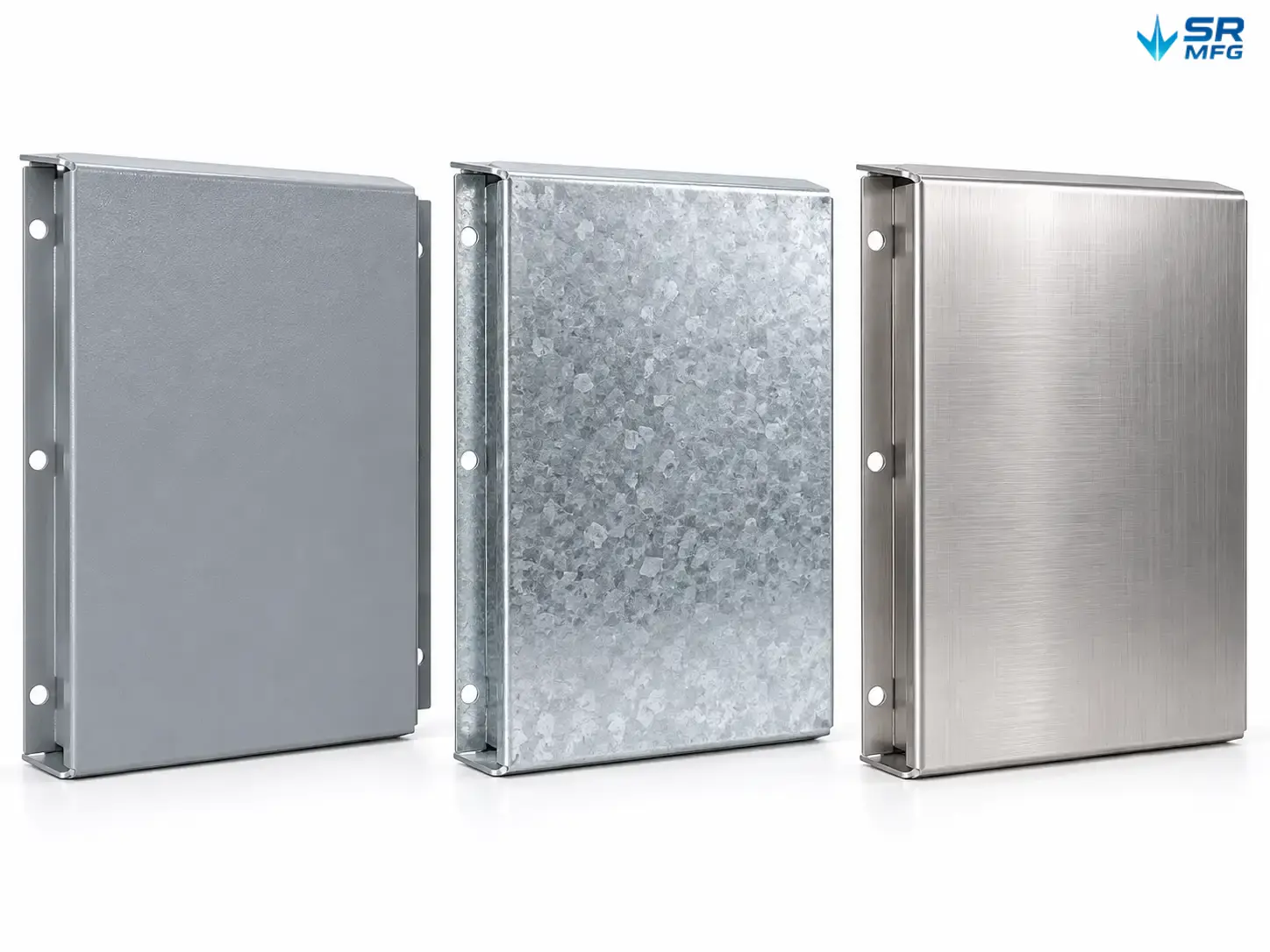

Compares powder-coated carbon steel, galvanized steel, and stainless steel surfaces used for outdoor electrical enclosures.
Selecting the right material depends primarily on corrosion exposure, project budget, and surface finish requirements.
Different outdoor environments require different combinations of base materials and protective finishes.
| Material | Typical Outdoor Applications | Surface Protection |
|---|---|---|
| Carbon Steel + Powder Coating | General outdoor industrial facilities and partially sheltered equipment installations | Custom RAL powder coating, with appropriate preparation of edges and welded joints before coating |
| Galvanized Steel | Humid locations and outdoor installations requiring additional corrosion protection | Zinc coating, with optional powder-coated topcoat for enhanced protection |
| Stainless Steel | Food processing environments, high-salt exposure, and applications involving frequent washdown | Brushed or passivated finish, with weld cleaning and finishing as specified |
Coating thickness, color, and surface texture are determined according to the project’s technical specifications.
We do not apply a single coating specification to every project. Instead, material and finishing options are evaluated based on the actual outdoor exposure conditions, corrosion risks, and applicable local requirements.
For coastal or chemically aggressive environments, the appropriate stainless steel grade or protective coating system should be confirmed during the design stage.
Flexible Configurations and Custom Sheet Metal Fabrication
Outdoor electrical enclosures often require project-specific structural modifications to accommodate installation conditions, internal equipment, and maintenance requirements.
Our custom sheet metal fabrication capabilities support a wide range of configurations.
Common customization options include:
- Custom Enclosure Dimensions: Tailored height, width, and depth within the practical limits of sheet metal forming, fabrication, and transportation.

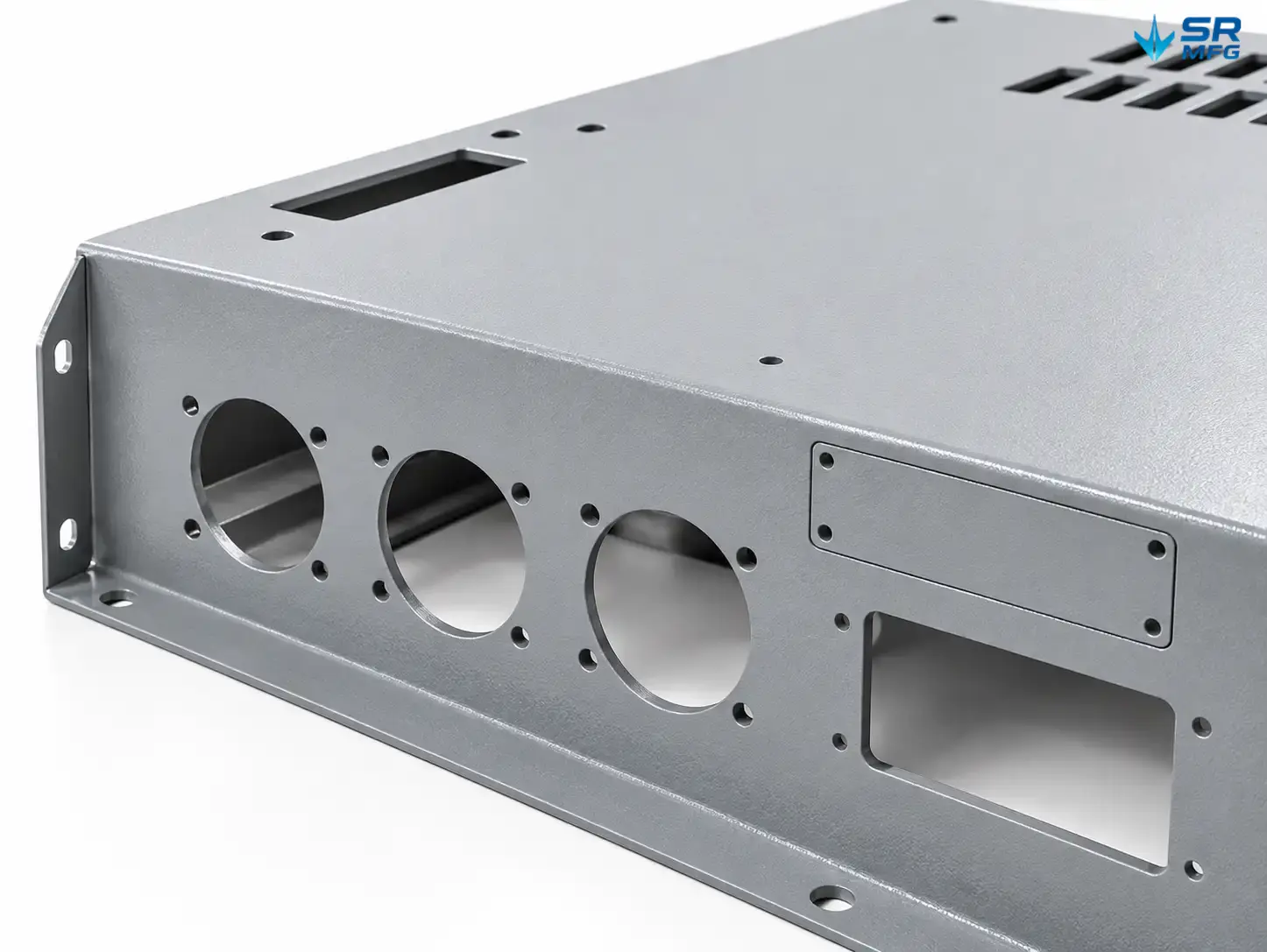

- Precision Cutouts and Knockouts: Cable gland holes, conduit knockouts, and connector openings manufactured according to specified coordinates.
- Viewing Windows: Transparent inspection windows for monitoring meters, circuit breakers, or other devices without opening the enclosure door.
- Branding and Identification: Custom nameplates, warning labels, and laser-engraved identification markings.

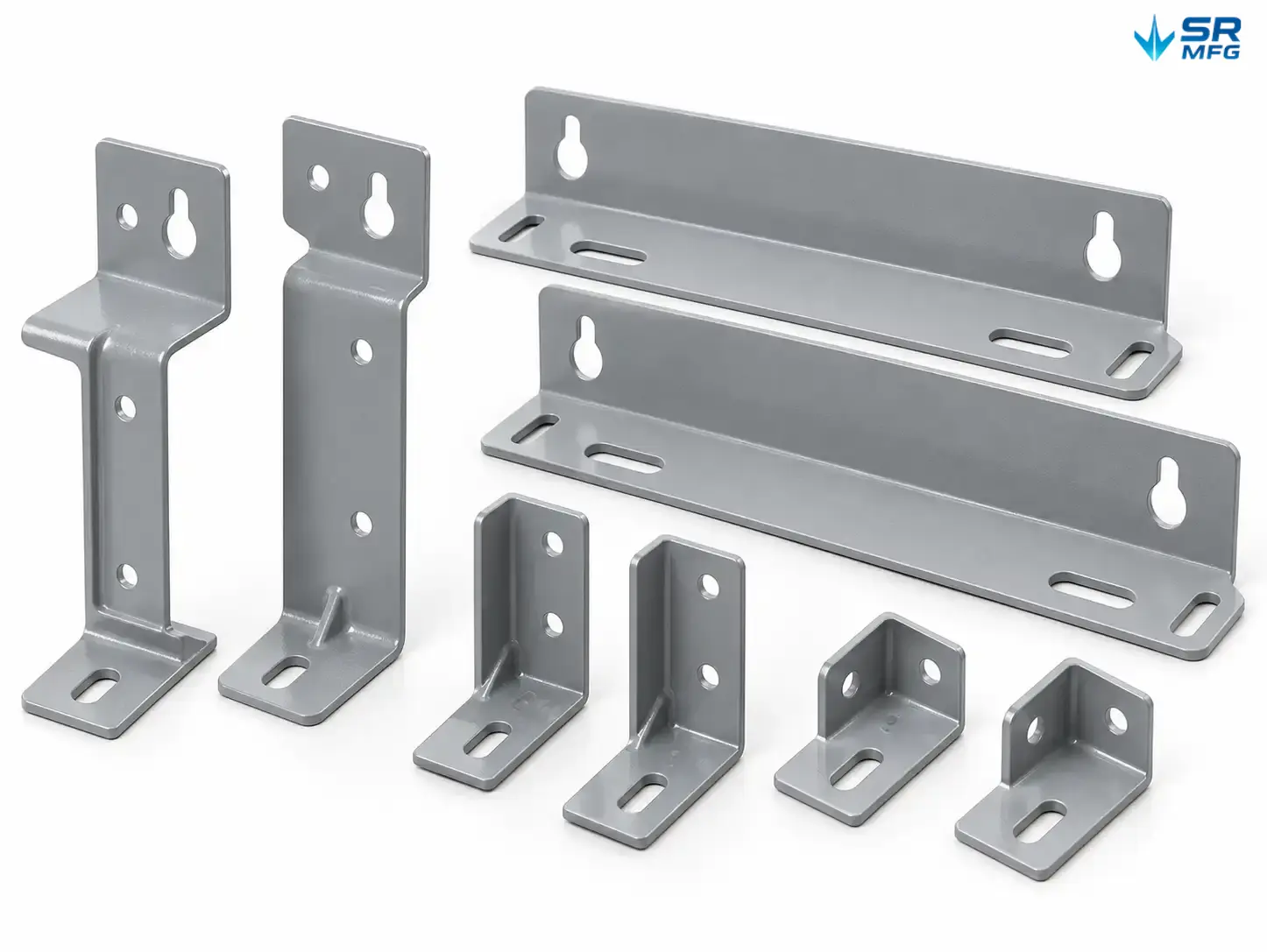

- Mounting and Protection Accessories: Pole-mount brackets, floor-standing bases, lifting lugs, and condensation-control accessories.
- Preassembly Options: Installation of mounting panels, DIN rails, or cable ducts before shipment.

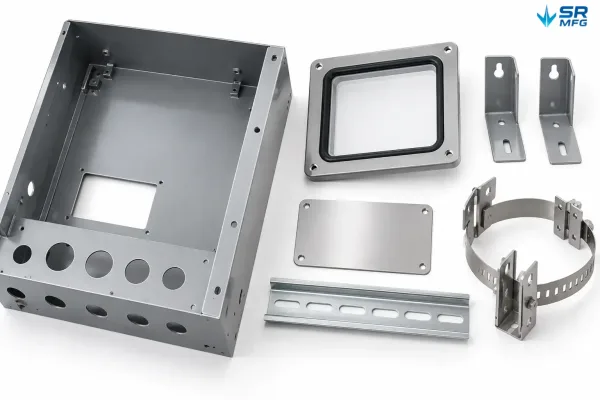

Shows custom fabrication options for outdoor enclosures: size adaptation, cutouts, viewing windows, nameplates, mounting hardware, and preassembly.
Application Examples
Municipal Lighting Control Enclosure
A municipal lighting control project may require a wall-mounted electrical enclosure with bottom cable entry points, a transparent viewing window for checking contactor status, and a padlock-compatible locking system.

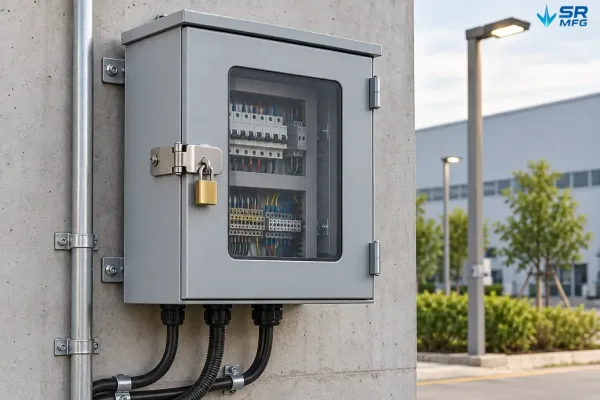

Shows a wall-mounted outdoor lighting control enclosure with bottom cable entry, viewing window, and padlock-compatible lock.
The enclosure may also need a specific RAL powder-coating color to comply with municipal equipment standards.
Solar Tracking Equipment Enclosure
A solar tracking installation may require a pole-mounted enclosure equipped with sealed cable glands, ventilation provisions, and stainless steel hardware for long-term outdoor use.
Although both products belong to the same general enclosure category, their structural designs, mounting arrangements, and environmental protection requirements differ.
Our manufacturing approach allows each enclosure to be configured around its actual application rather than forcing every project into a fixed design.

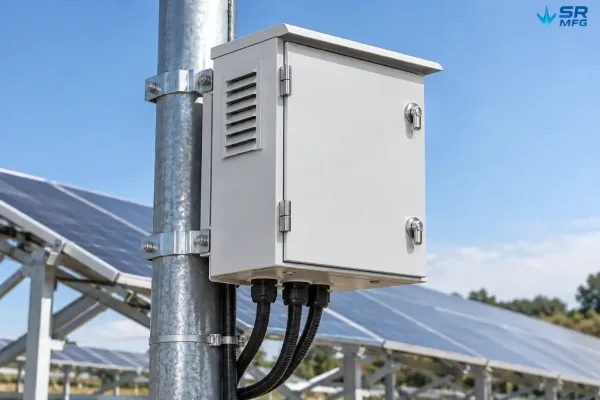

Shows a pole-mounted outdoor enclosure with sealed cable glands and ventilation provisions for solar tracking installations.
Outdoor Electrical Enclosure Applications
Our custom outdoor electrical enclosures are suitable for a wide range of industrial, energy, infrastructure, and utility applications.
Typical applications include:
- Street and Area Lighting: Outdoor lighting control and power distribution enclosures.
- Solar and Energy Systems: Enclosures for solar equipment, energy control systems, and associated electrical components.
- Telecommunications: Outdoor telecom cabinets, network power enclosures, and junction boxes.
- Industrial Automation: Outdoor machine control cabinets, industrial electrical enclosures, and junction boxes.
- EV Charging Infrastructure: Outdoor control enclosures and electrical panels for electric vehicle charging equipment.
- Utilities and Municipal Infrastructure: Equipment enclosures for water treatment, transportation systems, and other outdoor utility installations.

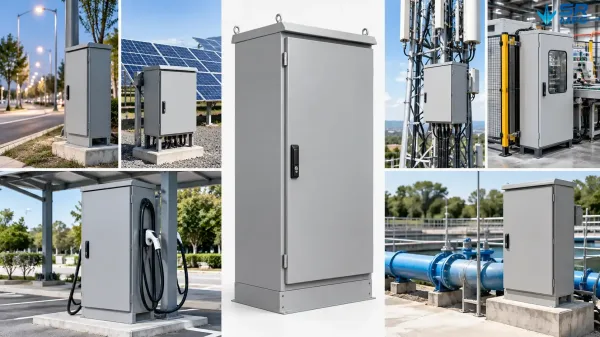

Represents typical outdoor application areas for custom weatherproof electrical enclosures, including lighting, energy, telecom, industrial control, EV charging, and utilities.
For projects involving densely arranged internal components or doors carrying heavy hardware, we recommend providing the internal equipment layout during the initial design stage.

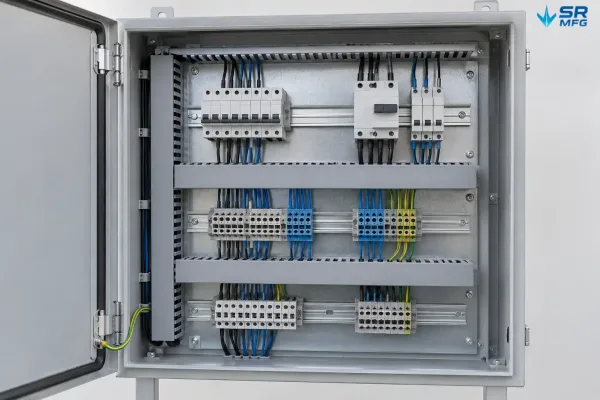

Shows an internal mounting panel and component layout used to confirm plate thickness, hinge class, and lock positions before fabrication.
This allows us to review and adjust mounting panel thickness, hinge specifications, and lock mounting positions before production, helping reduce fitment issues and unnecessary modifications during final assembly.
