DXF File

A DXF file looks like a complete drawing. It contains geometry, layers, and coordinates that appear precise enough to send directly to a fabricator. But a DXF file does not include material type, sheet thickness, tolerance, or bend information — the data a laser cutter or punch machine actually needs to produce parts.

Understanding what a DXF file contains, and what it does not, can prevent quotation delays, rework, and scrap.

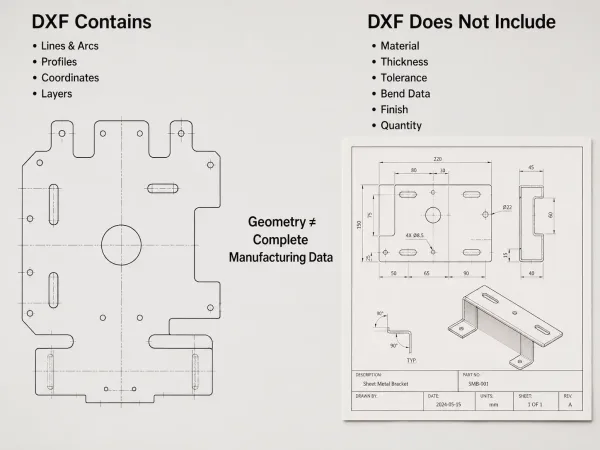

What a DXF File Actually Contains

A DXF file stores 2D vector geometry. The core entities are lines, polylines, arcs, circles, and splines — the basic building blocks of any 2D profile. These elements describe the shape of a part outline in coordinate space, using X and Y values to define every vertex and curve.

DXF files also support layers. Designers use layers to separate different types of geometry: outer contours on one layer, inner cutouts on another, and bend lines on a third. Layers help fabricators understand which geometry should be cut, which should be etched, and which should be ignored during production.

The format stores data as tagged text pairs. A group code identifies the data type, and a group value provides the actual content. In ASCII DXF files — the most common variant — this text is human-readable and can be inspected in any plain text editor. This simplicity is one reason DXF has remained a universal exchange format for over four decades.

Blocks are another feature worth knowing. A block is a reusable geometry group — a repeated hole pattern, a company logo, or a standard fixture shape. Blocks reduce file size and make edits easier, but they can also cause import problems when the receiving CAM software interprets them differently than the originating CAD system.

What DXF Does Not Include

This is the part most engineers overlook, and it matters more than the geometry itself.

A DXF file does not specify:

• Material type — steel, aluminum, stainless, copper, or any other alloy
• Sheet thickness — the gauge or millimeter dimension of the raw stock
• Tolerances — acceptable dimensional deviation for critical features
• Bend radius or bend angles — forming parameters for brake press operations
• Surface finish requirements — Ra values, coatings, or post-processing
• Grain direction — important for stainless steel and aluminum appearance parts
• Quantity or batch size — how many parts the order requires

When you send a DXF file to a fabricator, you are sending geometry only. Everything else — material, thickness, tolerance, finish — must come from a separate drawing, a specification sheet, or a purchase order.

If the fabricator receives a DXF without these details, they must ask for clarification before quoting. That back-and-forth adds days to the lead time.

Why Fabricators Ask for DXF Files

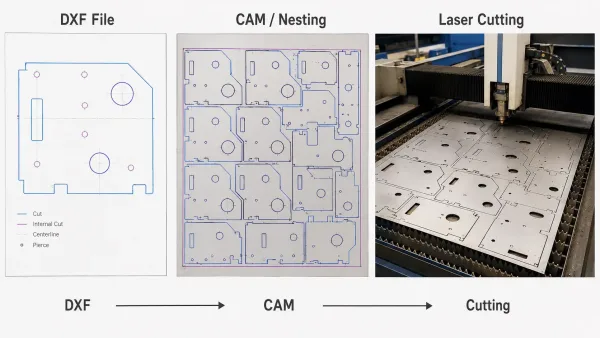

Laser cutting machines, waterjet cutters, and CNC punch presses read 2D profile geometry to generate toolpaths. DXF is the most widely supported format for this purpose because nearly every CAD system can export it, and nearly every CAM system — the software that controls cutting machines — can import it.

The format’s simplicity is its strength. A DXF file contains exactly the geometry the machine needs to trace a cutting path: coordinates, curves, and layer assignments. No embedded design history, no parametric constraints, no proprietary metadata that might confuse the receiving software.

This makes DXF reliable for direct import into nesting software, which arranges multiple parts on a single sheet to minimize material waste.

For flat parts — brackets, plates, gaskets, flanges — DXF paired with a clear material callout on the purchase order is often sufficient. The fabricator reads the geometry, matches it to the specified material and thickness, and moves directly into production planning.

When DXF Is Not Enough

For parts with bends, weldments, or tight tolerances, DXF alone is not enough. A 2D DXF file cannot describe a 3D formed part. It cannot communicate bend sequence, tooling selection, forming direction, or the relationship between flat pattern and finished geometry.

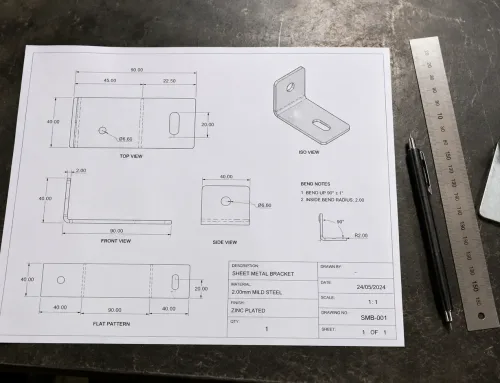

In these cases, fabricators prefer a combination: DXF for the flat pattern, and a separate engineering drawing for bend details, material specifications, and critical dimensions. Some fabricators also accept STEP files for complex 3D geometry, which carry more information than a 2D drawing can represent.

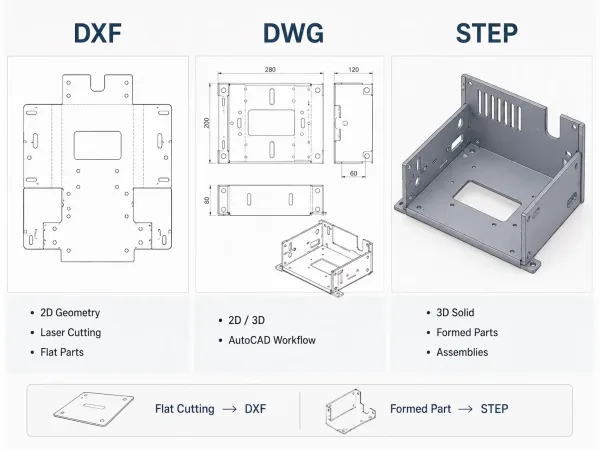

DXF vs DWG vs STEP — Which File Format to Send

Choosing the right file format depends on what you are making and what your fabricator’s equipment can read. The table below compares the three most common formats in sheet metal fabrication.

For laser cutting and flat profiling, DXF is the standard choice. It gives the fabricator the 2D geometry the cutting machine needs without unnecessary complexity.

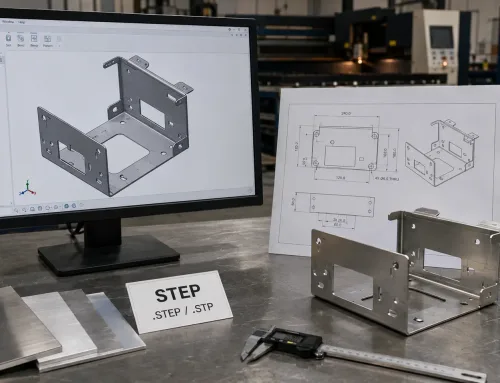

For 3D parts that will be formed, machined, or assembled, STEP provides more complete information. A STEP file carries parametric surfaces, solid geometry, and assembly structure that a 2D DXF cannot represent.

DWG works when both parties use AutoCAD, but it is not ideal for cross-platform exchange. If your fabricator uses a different CAD or CAM system, DWG files may require conversion — and conversion sometimes introduces geometry errors.

When in doubt, ask your fabricator which format they prefer. Most sheet metal fabricators will accept DXF for flat cutting and STEP for formed parts.

Common DXF Export Problems That Cause Manufacturing Delays

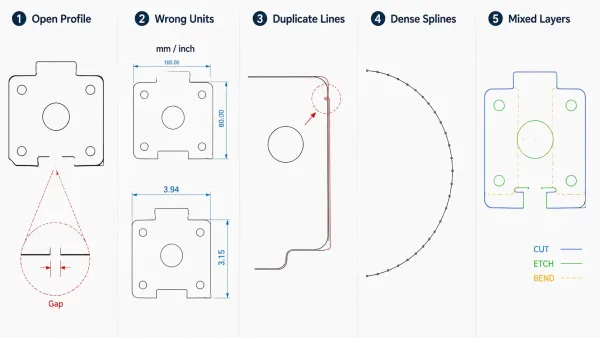

A DXF file that looks correct on screen can still cause problems on the shop floor. The issues below are the most common sources of delays, and each one traces back to how the file was exported rather than how the part was designed.

Open or unclosed profiles. When a part outline contains gaps between adjacent line segments, the cutting machine cannot recognize it as a closed contour. The CAM software may skip the geometry entirely, cut it incorrectly, or require manual repair by a technician. This delays the job because file repair happens before quoting or production — not during it.

Wrong scale or units. DXF files do not consistently specify measurement units. A file designed in millimeters may import as inches, producing parts 25.4 times too large or too small. This is one of the most common causes of rejected first articles, and it is entirely preventable by checking units before export.

Duplicate or overlapping lines. Merged design revisions sometimes leave stacked geometry — two or more lines occupying the same path. The machine may cut the same line twice, which doubles cycle time, increases the heat-affected zone on the material, and can cause edge quality problems on stainless steel and aluminum.

Excessive spline density. Curves exported from illustration software such as Adobe Illustrator or Inkscape often convert to dense polyline chains — hundreds of tiny line segments approximating a smooth curve. These generate oversized toolpaths that slow down cutting and may exceed the machine controller’s memory limits.

Layers not separated by function. When cut geometry, etch marks, and bend lines all sit on the same layer, the fabricator cannot distinguish them without a separate specification. This forces a manual review of every entity in the file, adding time and cost to the quotation process.

Why These Problems Increase Lead Time and Cost

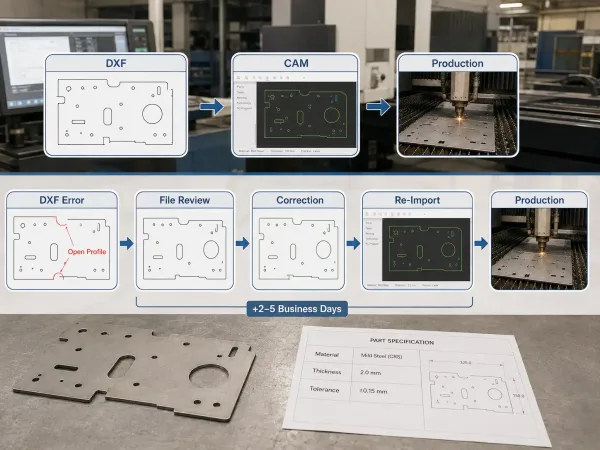

Each of the issues above creates a file review step that sits between your design release and the fabricator’s production planning. A technician must open the file, identify the problem, either fix it or request a correction, and re-import into the CAM system.

On a tight schedule, this added step can push delivery dates by two to five business days. On a complex job with multiple parts, the delay multiplies.

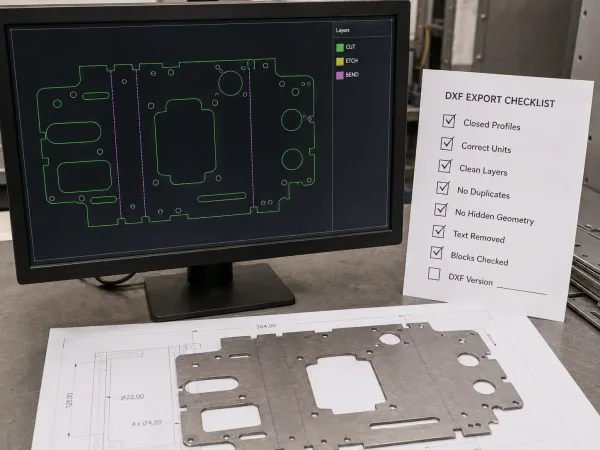

Pre-Export Checklist — What to Verify Before Sending a DXF

Use this checklist before exporting a DXF for laser cutting or sheet metal fabrication. These checks take five minutes and can prevent days of delay.

• All part outlines are closed polylines with no gaps between segments
• Inner cutouts are separate closed profiles, distinct from the outer contour
• Units are consistent and match the intended measurement system (mm or inches)
• Layers are clearly named — for example: CUT for outer contours, ETCH for markings, BEND for bend lines
• No hidden, frozen, or construction geometry remains in the file
• No duplicate or overlapping lines exist on the same layer
• Text and annotations are removed or placed on a non-cut layer
• Block references are exploded if the receiving software has known import issues
• File is saved in a widely compatible DXF version — R2010 or earlier for maximum compatibility across CAM systems

When to Ask Your Fabricator Before You Export

Different fabricators use different CAM systems, and each system handles DXF import slightly differently. A two-minute conversation before export can prevent file revision cycles later.

Ask your fabricator:

• Which DXF version do your machines prefer?
• Do you want block references exploded or preserved?
• How should I name layers for cut, etch, and bend lines?
• Do you accept splines, or should I convert curves to polylines?

If you are preparing DXF files for laser cutting or sheet metal fabrication and want a second set of eyes on your export settings, our engineering team can review your files before they go to production. We work with DXF files daily and can flag common issues — open profiles, unit mismatches, layer problems — before they cause delays on the shop floor.
